Name: Posterior Cerebral Circulation Vessel Model
Brand: Preclinic Medtech (Shanghai) Co., Ltd.
Availability: InStock

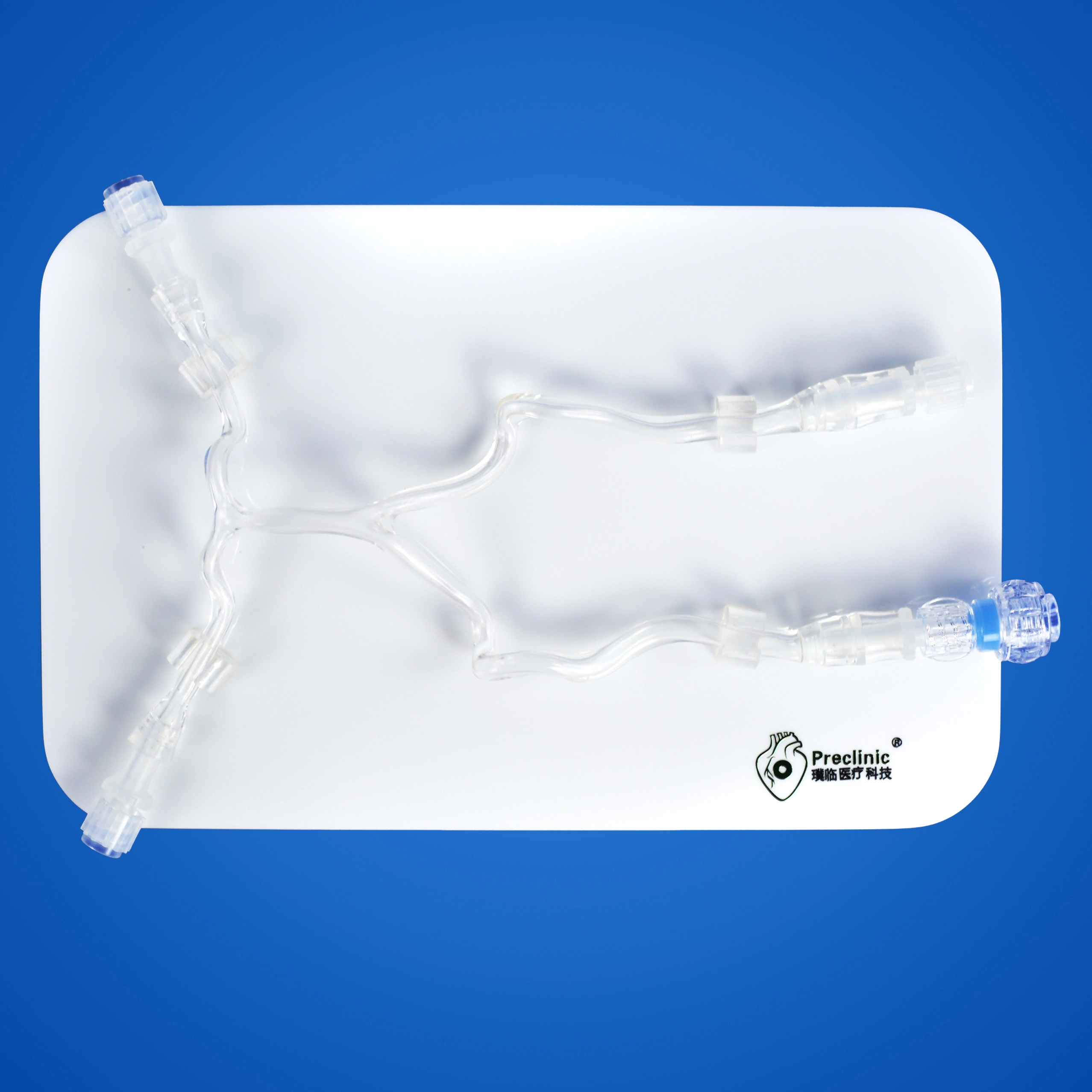

Posterior Cerebral Circulation Vessel Model

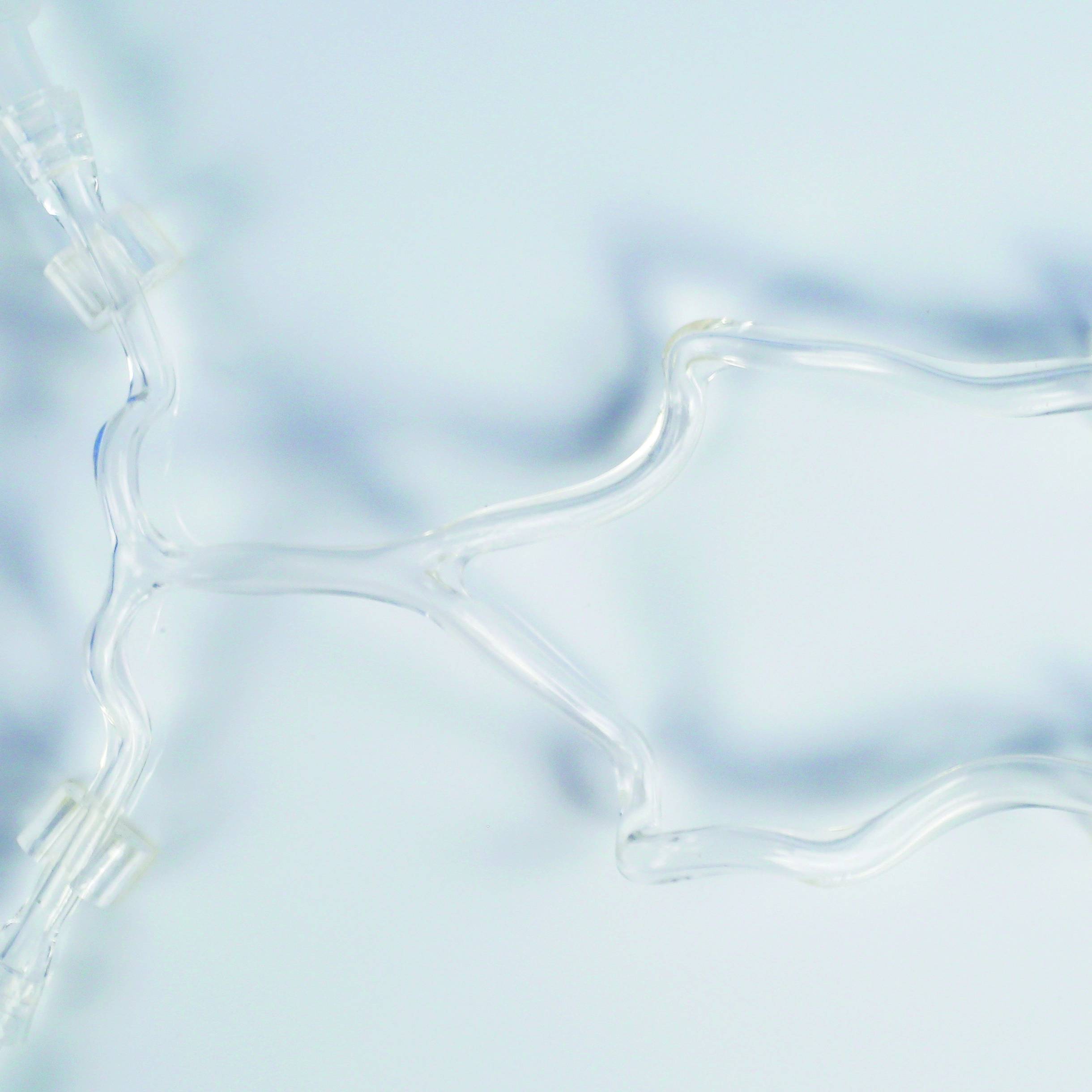

This vertebral artery model is mainly made of high transparent soft silica gel, which is used for surgical training related to intracranial artery interventional diagnosis and treatment, performance test and function demonstration of surgical instruments. The surgical instruments of the cerebral artery model involved include test and demonstrate the trafficability of the devices in posterior cerebral circulation vessels.

Specification of Posterior Vertebral Artery Model

Features	The main body accurately reproduces the anatomical morphology and relative position relationship of the vertebral artery, basilar artery, and posterior cerebral artery, and fully replicates the posterior cerebral circulation vascular pathway, providing a clinically realistic anatomical environment for posterior circulation related instrument testing and operation training. The core functional positioning is clear, which can accurately test and visually display the passability, push ability, and controllability of various neurovascular intervention instruments in the posterior circulation of the brain, providing targeted scenario support for instrument development verification and clinical operation drills. The main body of the blood vessel is made of highly transparent soft silicone material, which combines soft texture and high transparency. It can simulate the real touch of human blood vessels and clearly observe the full dynamic movement and turning of the instrument inside the blood vessels.
PN	PLXG2002
Main Material	Highly transparent soft silica gel, hardness: 30A
NW	0.4KG
Product Size	Model length: 27 cm
	Model width: 14 cm
	Model height: 2.5 cm
Lead Time	15 days
Origin	Shanghai, China

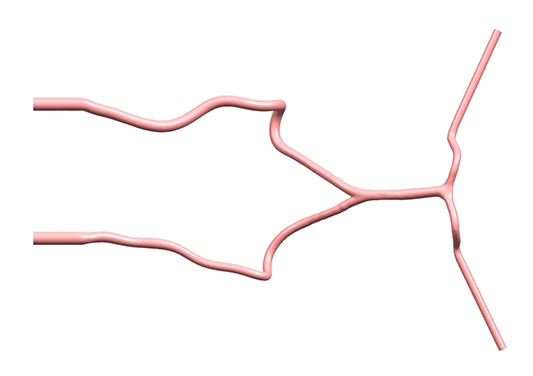

Drawing of Posterior Brain Vessel Model

Main Dimensions of Posterior Brain Vessel Model

FAQ On Posterior Cerebral Circulation Vessel Model

What specific surgical training and instrument testing can this vascular model support?

Answer: The core of the model supports neurovascular intervention related scenarios, and surgical training includes neurovascular angiography surgery, thrombectomy surgery, and neuromicrocatheter intervention surgery; The device testing and evaluation cover neurovascular intervention devices such as guide wires, catheters, vascular stents, spring coils, and thrombectomy stents, meeting the needs of clinical training and enterprise product development testing.

Is the material of the model safe? Can transparency meet the needs of operational observation?

Answer: The model body is made of food grade soft silicone, non-toxic and odorless, and can provide official testing certificates. Its safety meets the standards of medical simulation products; Material transparency ≥ 90%, combined with soft texture, can clearly observe the movement, positioning and other details of the instrument inside the blood vessels.

How portable is the product? Does it include replacement parts or additional supporting devices?

Answer: The product is designed to be lightweight, with a net weight of only 0.4kg and a total weight (including packaging) of 1kg. It is paired with a special canvas bag for easy daily carrying and outdoor teaching; The standard accessories include 1 Y valve, 1 bottle of 50ml lubricant, and 1 syringe.
