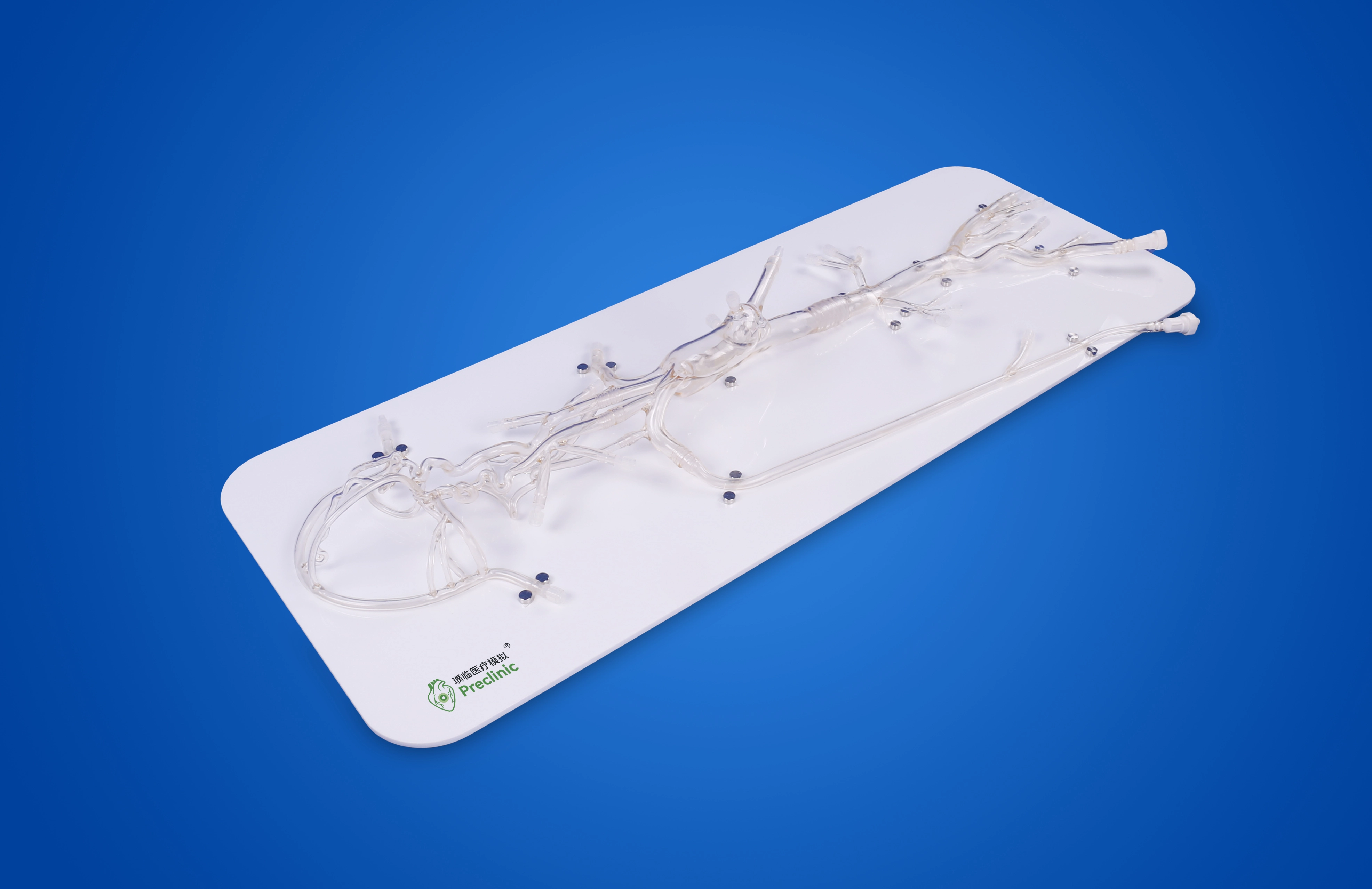

Neurovascular Operation Training Model-Type C



Intracranial Vascular Model

This product is mainly made of high transparent soft silica gel, which is used for surgical training related to intracranial artery interventional diagnosis and treatment, performance test and function demonstration of surgical instruments. The surgical instruments involved include intracranial vascular interventional guide wire, catheter, stent, spring coil, thrombectomy device, thrombus filter and other instruments. Surgical simulator manufacturer Preclinic specializes in high-end Neurovascular operation training model-type C to meet different training needs.

Specification of Neurovascular Operation Training Model-Type C

Features	Composition:The cavernous sinus segment (C4 segment) and posterior communicating artery of CA originate from the C7 segment (communicating segment), vertebral artery, anterior cerebral artery A1 segment, anterior communicating artery, middle cerebral artery M1 segment, posterior cerebral artery P1 segment, external iliac artery, femoral artery, abdominal aorta, and renal artery Replaceable parts: Middle cerebral artery, vertebral artery. Procedure: Training on diagnosis and treatment skills of interventional surgery such as intracranial artery stenosis and aneurysm, and functional test of relevant surgical instruments. Other characteristics: The silicone vascular models are crafted from transparent and soft materials, featuring replaceable modules that simulate aneurysms, stenosis, and other vascular lesions.
PN	MODEL: PL SJXG001C
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 108 cm (42.5 in) Model width: 48 cm (18.9 in) Model height: 34 cm (13.4 in)
Lead Time	15 days
Origin	Shanghai, China

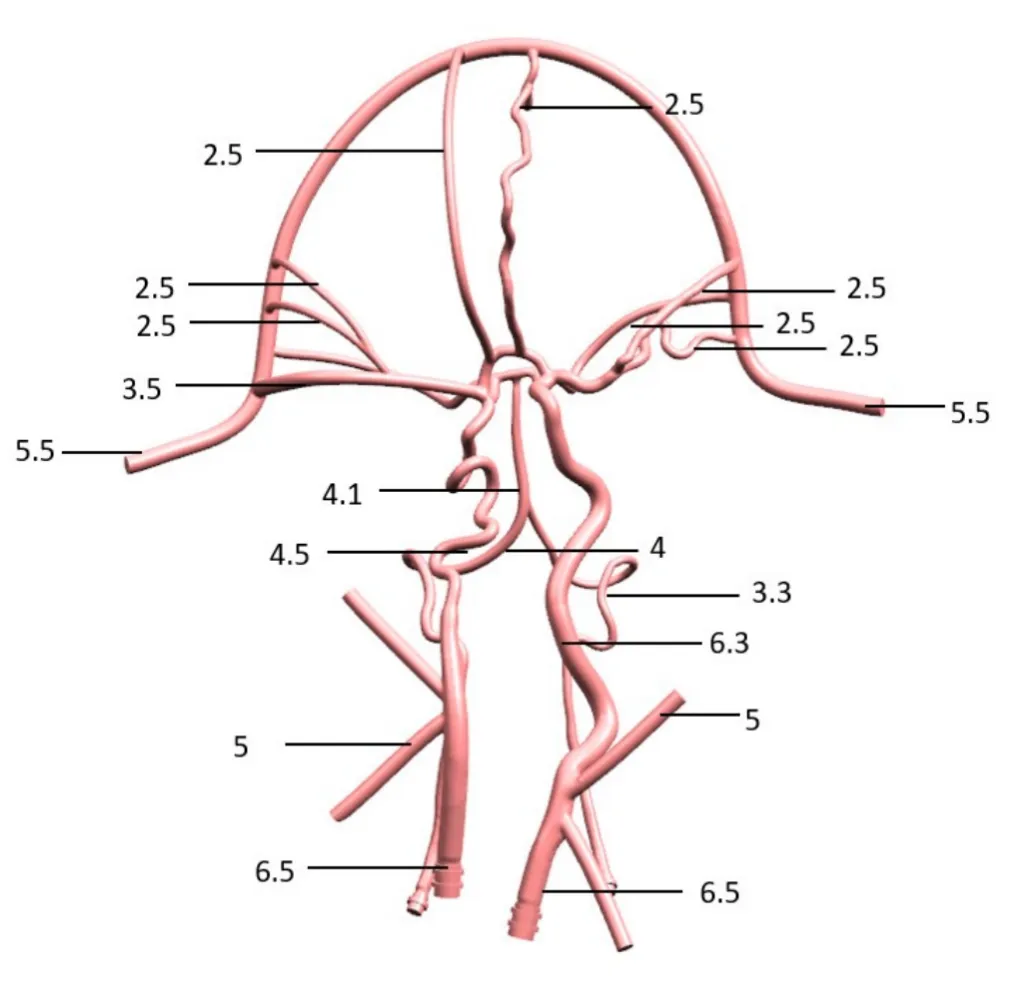

Drawing of Neurovascular Operation Training Model-Type C

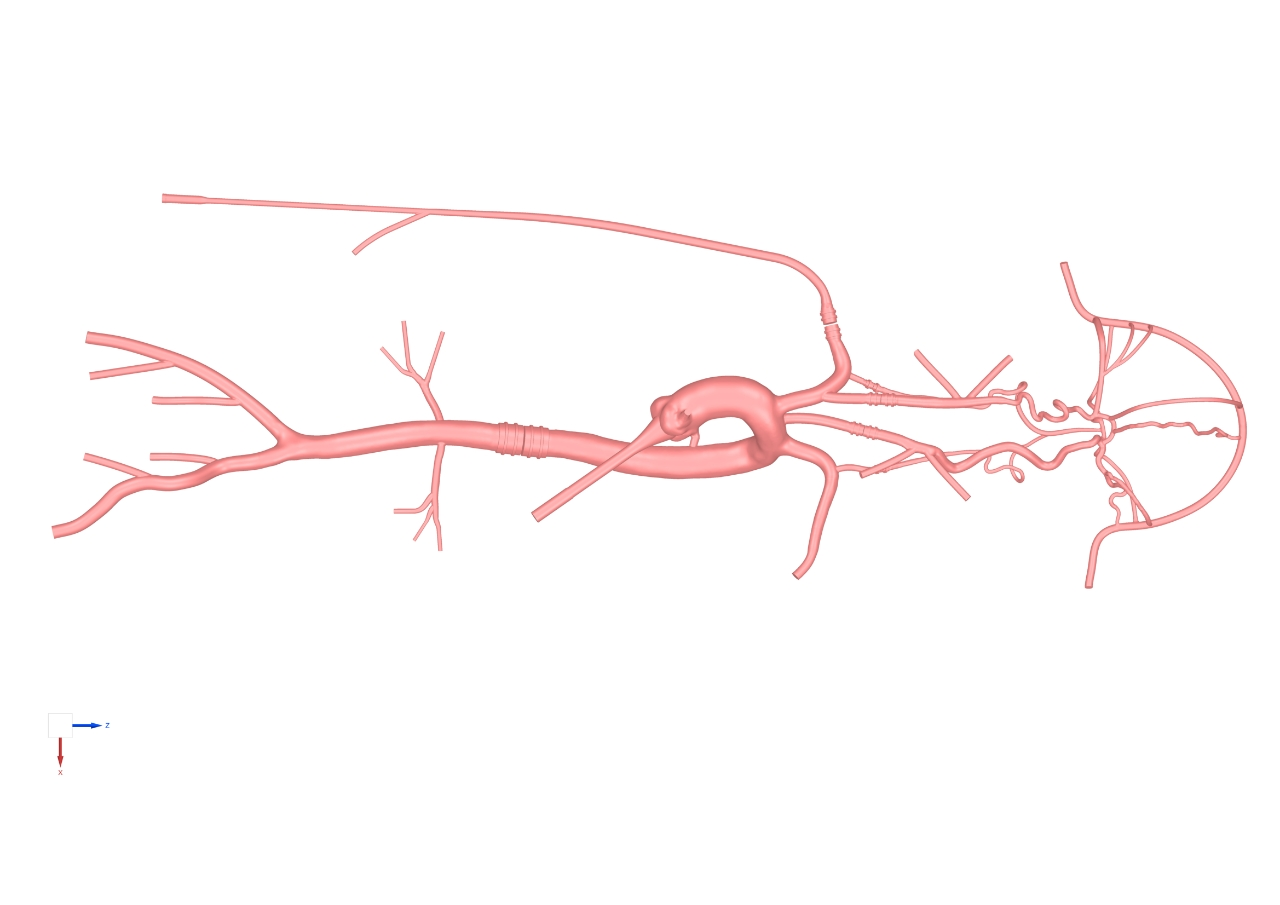

Main Dimensions of Neurovascular operation training model-type C
