Name: Neurovascular Operation Training Model-Type A
Brand: Preclinic Medtech (Shanghai) Co., Ltd.
Availability: InStock

Intracranial Vascular Model

This circle of willis model is mainly made of high transparent soft silica gel, which is used for surgical training related to intracranial artery interventional diagnosis and treatment, performance test and function demonstration of surgical instruments. The surgical instruments involved include intracranial vascular interventional guide wire, catheter, stent, spring coil, thrombectomy device, thrombus filter and other instruments.

Specification of Neurovascular Operation Training Model-Type A

Features	It includes cerebral artery vessels such as the anterior posterior middle artery, basilar artery, Willis ring, etc. with aneurysms and narrowed segments, as well as the main blood vessels and branches of nerve intervention surgical pathways such as the left and right vertebral arteries, left and right common carotid arteries, thoracic aorta, iliac artery, and femoral artery. High transparency material with excellent visualization effect: The main body is made of food grade high transparency soft silicone, which can clearly observe the movement status of vascular instruments. Optimization design based on real human CT data, 1:1 restoration of intracranial and systemic arterial lumen dimensions (including key blood vessels such as the middle cerebral artery, internal carotid artery, aortic arch, etc.). It can adapt to the testing and evaluation of interventional instruments such as guide tubes, guide wires, balloon dilation stents, and can also carry out surgical training such as angiography and balloon dilation; Support customized aneurysm and stenosis lesions at different locations to meet diverse testing and training needs. Special instrument insertion ports are set up in the radial artery, femoral artery, and subclavian artery to fit the clinical interventional surgical approach; mark
PN	PLSJXG001A
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 104 cm Model width: 49 cm Model height: 19 cm
Lead Time	15 days
Origin	Shanghai, China

Drawing of Neurovascular Operation Training Model-Type A

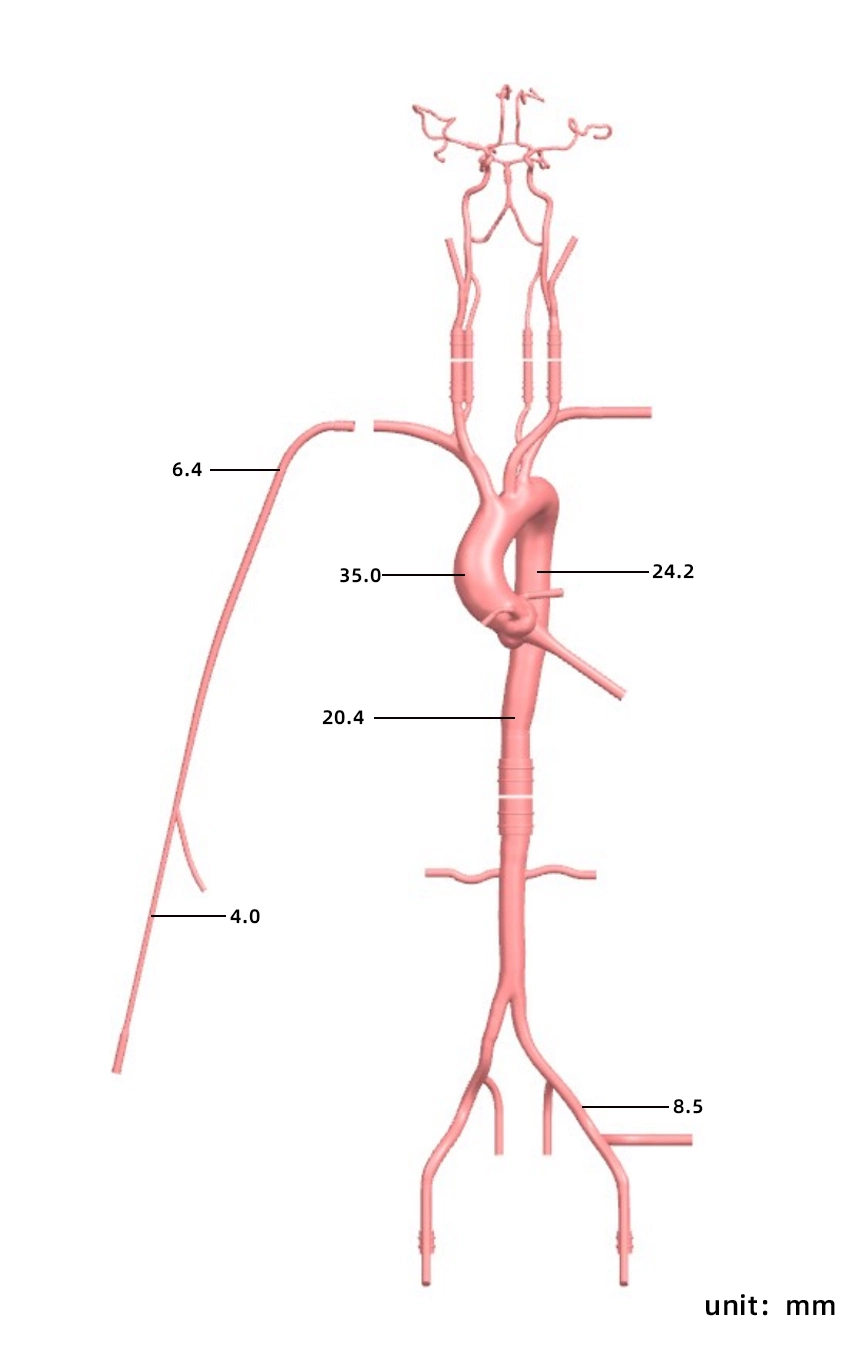

Main Dimensions of Neurovascular operation training model-type A

Drawing of Neurovascular Operation Training Model-Type A

FAQ On Neurovascular Operation Training Model-Type

Which populations and scenarios is this model applicable to?

Answer: Suitable for clinical skills training in medical institutions, teaching and training in medical colleges, as well as product testing and display scenarios for vascular intervention device enterprises. The core users are medical students, interventional doctors, and device development/testing personnel.

What core operations can the model support? What devices are suitable for?

Answer: Surgical training such as angiography and balloon dilation can be conducted, while supporting the testing and evaluation of interventional instruments such as guide catheters, guide wires, and balloon dilation stents; Special insertion ports are provided in the radial artery, femoral artery, and other areas, which conform to the clinical surgical approach.

Is the daily maintenance of the model convenient? Does it support personalized customization?

Answer: Easy to maintain, the main body is made of food grade silicone material, easy to clean, and the matching air transport box can ensure storage and transportation safety; Support customized modules for aneurysms and stenosis lesions in different locations. The model can also support acrylic shell versions and be equipped with a luminous base plate. Please communicate with our sales team for detailed requirements.
