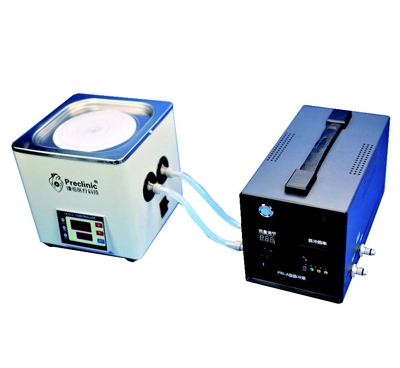

Cardiac Hemodynamic Simulation Device

Name: Cardiac Hemodynamic Simulation Device
Brand: Preclinic Medtech (Shanghai) Co., Ltd.

This hemodynamic waveform simulator is mainly composed of a pulse pump system, a control system, and an output display system. It is used to provide a blood flow power source for a human blood flow simulation device, and can accurately adjust the required simulation parameters. Also, the hemodynamic simulator is used to heat the simulated fluid of the cardiovascular model and control the temperature.

The cardiovascular simulator's high accuracy and real-time feedback capabilities make it an indispensable tool for enhancing the skills of healthcare professionals. By investing in this state-of-the-art hemodynamic simulation device, institutions can significantly improve the quality of education and patient care outcomes.

Choose Preclinic Medtech's cardiovascular hemodynamic waveform simulator for unparalleled performance, reliability, and comprehensive support in your medical training and research endeavors. This cardiovascular simulator is designed to meet the highest standards, ensuring that your team is well-prepared for real-world scenarios.

Products

Medical Simulation Models



Silicone Vessels

Full Body Vascular Simulation Models Neuro vascular intervention simulation Silicone Cardiac Vessels Silicone Peripheral Vessels



Endoscopy Simulators

Bronchoscopy Training Model Endobronchial therapy training model Respiratory Endoscope Training Model Pediatric Bronchoscope Training Model Colonoscopy Training Model Upper Gastrointestinal Simulator Urological Endoscope Training Model Hysteroscopy Simulator Endobronchial ultrasound (EBUS-TBNA) Training Model

Supporting Equipments



Cardiac Hemodynamic Simulation Device



Large flow pulsation pump



Blood Pressure Simulator



Camera System for Medical Models

Accessories



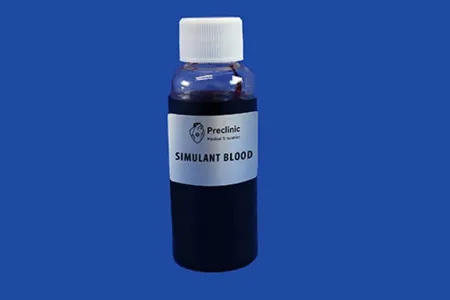

Physical Sim Accessories

Operation Training Simulator



Bronchoscopy Operation Training Simulator



IPSIM Bronchoscopic Operation Training Virtual Simulator

Features of Cardiac Hemodynamic Simulation Device

Composition: Analog pump, touch screen display, pressure sensor interface.
Product parameters:

• Pulsatile frequency: 10-160 beats/ min

• Flow range: 200-2,000 ml/ min

• Maximum output pressure: 250 mmHg

• Current/ voltage: 24V/ 3A

• Volume: 3L

• Power: 300 W

• Temperature control range: + 5°C-100°C

• Temperature control accuracy: ± 0.5°C

• Outer packing size: 640 * 420 * 320 (mm)

•Weight of the cardiac output simulator: 6.5 kg

Other characteristics: Hemodynamic simulation provides simulated fluid for the cardiovascular model and can adjust the temperature, flow rate, and pressure of the simulated fluid. The parameter adjustment accuracy is high, and the touch screen outputs a parameter curve. As one of the top-ranked medical simulator manufacturers, our cardiovascular simulator also provides an ideal platform for the research and development of new medical devices, ensuring that new products are fully tested and validated before clinical application.

Specification of Cardiac Hemodynamic Simulation Device

Cardiac hemodynamic simulation device	MODEL: PLAB2001
Features	Controllable output liquid frequency, flow, and temperature
	Stable operation state, small size, lightweight and portable
	Quick and easy joint connection and less liquid sprinkling
	Output simulated blood with temperature for human hemodynamic simulation devices (e.g. water, preclinical lubricating fluid, blood, etc.)
	Easy installation, applicable to cardiovascular hemodynamic demonstration and training devices.
Lead Time	15 days
Port	Shanghai, China
