Endobronchial Ultrasound (EBUS) Training Model

Features of Endobronchial Ultrasound (EBUS) Training Model

• Composition: Main airway, bronchi (second to fifth-level branches)

• Procedure: Ultrasound-guided transbronchial needle aspiration (EBUS-TBNA)

• Other characteristics: Based on adult lung CT data, a bronchial model was designed and made of soft silicone material and ultrasound material. The ultrasound bronchoscope or the micro-ultrasound probe can be used to enter the endotracheal lumen for ultrasound scanning to obtain ultrasound imaging of the tracheal lymph. And the puncture needle can penetrate the trachea to obtain the simulated lymphoid tissue specimen. The trachea has seven enlarged lymph nodes: 2R, 4R, 10R, 2U 4U 10L, 7.

Specification of Endobronchial Ultrasound (EBUS) Training Model

Endobronchial Ultrasound (EBUS) Training Model	MODEL: PLHX1003 (endoscopy simulator)
Main Material	Highly soft silica gel, hardness:18A~30A
Product Size	Model length: 28 cm (11 in)
	Model width: 28 cm (11 in)
	Model height: 14 cm (5.5 in)
Lead Time	15 days
Port	Shanghai, China

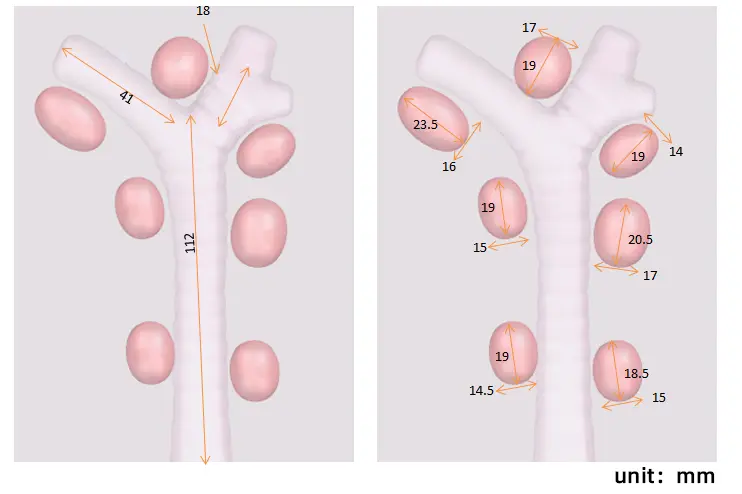

Drawing of Endobronchial Ultrasound (EBUS) Training Model
