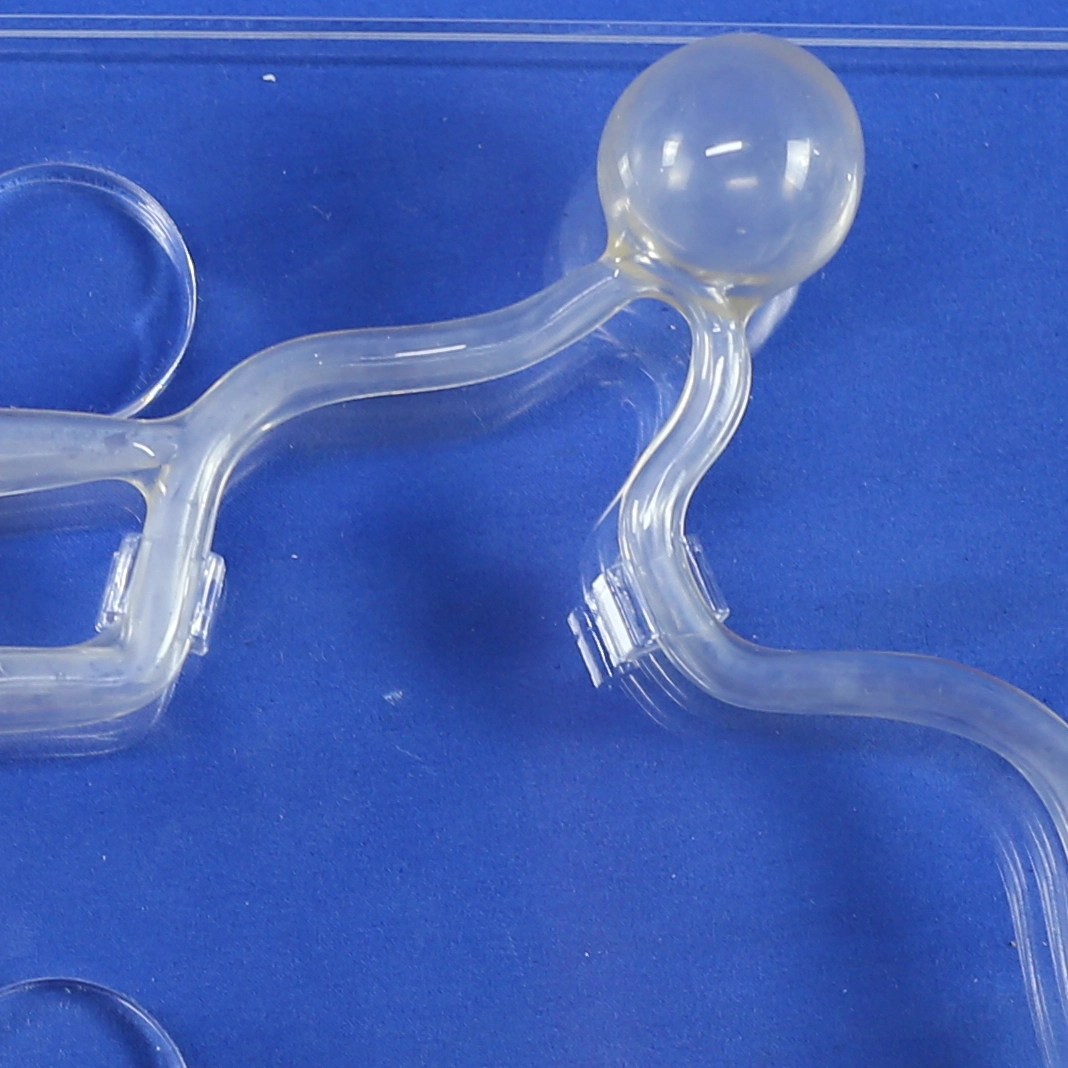

Arterial aneurysm model

Arterial Aneurysm model accurately replicates the anatomical structure and size of carotid arteries and aneurysms, and is designed specifically for the testing, evaluation, and surgical training of vascular intervention instruments. The model supports the operation testing of instruments such as catheters, guide wires, and spring coils, and can carry out core surgical simulation training such as angiography and embolization. With high transparency materials, it achieves clear visualization of instrument movement status. Combined with real instrument access design and lightweight portable structure, it provides safe, efficient, and clinically relevant practical training and product development testing solutions for medical colleges, medical institutions, and instrument enterprises.

Specification of Arterial aneurysm model

Features	Reconstruct the anatomical morphology and size ratio of the carotid artery (Ø 3.9mm-6mm), external carotid artery (Ø 5.5mm), and aneurysm (S Ø 24mm), with a vascular branch layout that conforms to the physiological structure of the human body, simulating real clinical operation scenarios; Using food grade high transparency soft silicone with a transparency of ≥ 90%, the movement trajectory and operational details of the instrument inside blood vessels and aneurysms can be clearly observed; The carotid artery is equipped with a dedicated guide wire/catheter insertion port, which perfectly simulates the clinical instrument access path, supports the full process training of angiography, embolization and other surgeries, as well as precise testing of catheters, guide wires, spring coils and other instruments. The operating logic is highly consistent with human practical operation;
PN	PLXG2003
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 21 cm
	Model width: 15 cm
	Model height: 3.5cm
Lead Time	15 days
Origin	Shanghai, China

Drawing of Arterial aneurysm model

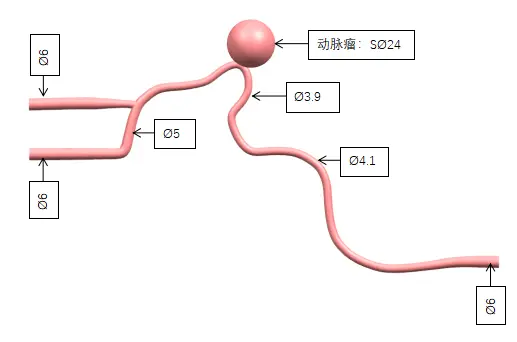

Main Dimensions of Arterial aneurysm

FAQ on Arterial aneurysm model

What specific surgical training and instrument testing can this vascular model support?

Answer: The core of the model supports neurovascular intervention related scenarios, and surgical training includes neurovascular angiography surgery, thrombectomy surgery, and neuromicrocatheter intervention surgery; The device testing and evaluation cover neurovascular intervention devices such as guide wires, catheters, vascular stents, spring coils, and thrombectomy stents, meeting the needs of clinical training and enterprise product development testing.

Is the material of the model safe? Can transparency meet the needs of operational observation?

Answer: The model body is made of food grade soft silicone, non-toxic and odorless, and can provide official testing certificates. Its safety meets the standards of medical simulation products; Material transparency ≥ 90%, combined with soft texture, can clearly observe the movement, positioning and other details of the instrument inside the blood vessels.

How portable is the product? Does it include replacement parts or additional supporting devices?

Answer: The product is designed to be lightweight, with a net weight of only 0.4kg and a total weight (including packaging) of 1kg. It is paired with a special canvas bag for easy daily carrying and outdoor teaching; The standard accessories include 1 Y valve, 1 bottle of 50ml lubricant, and 1 syringe.
