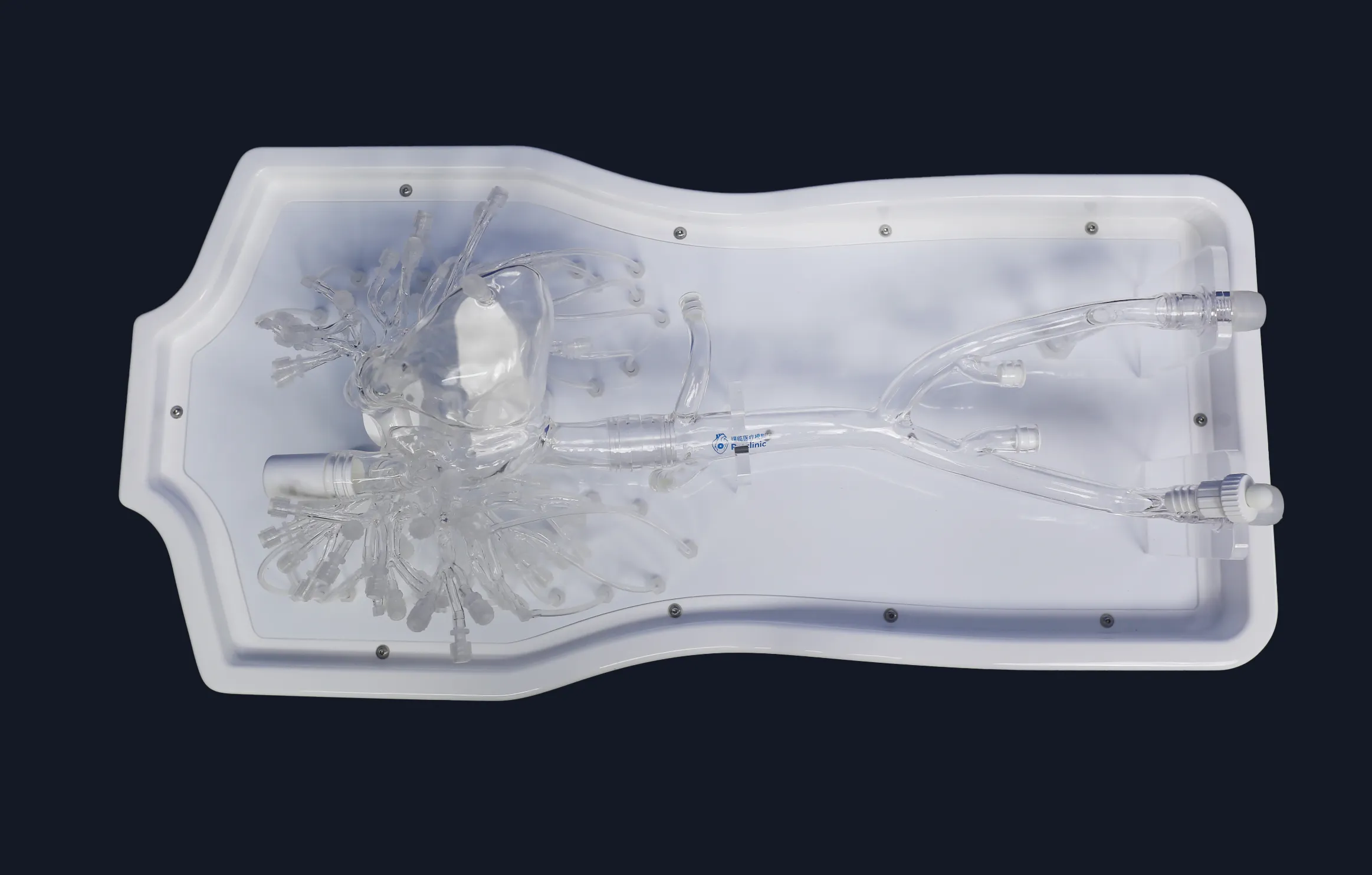

Right Cardio-Pulmonary Artery Simulation Model

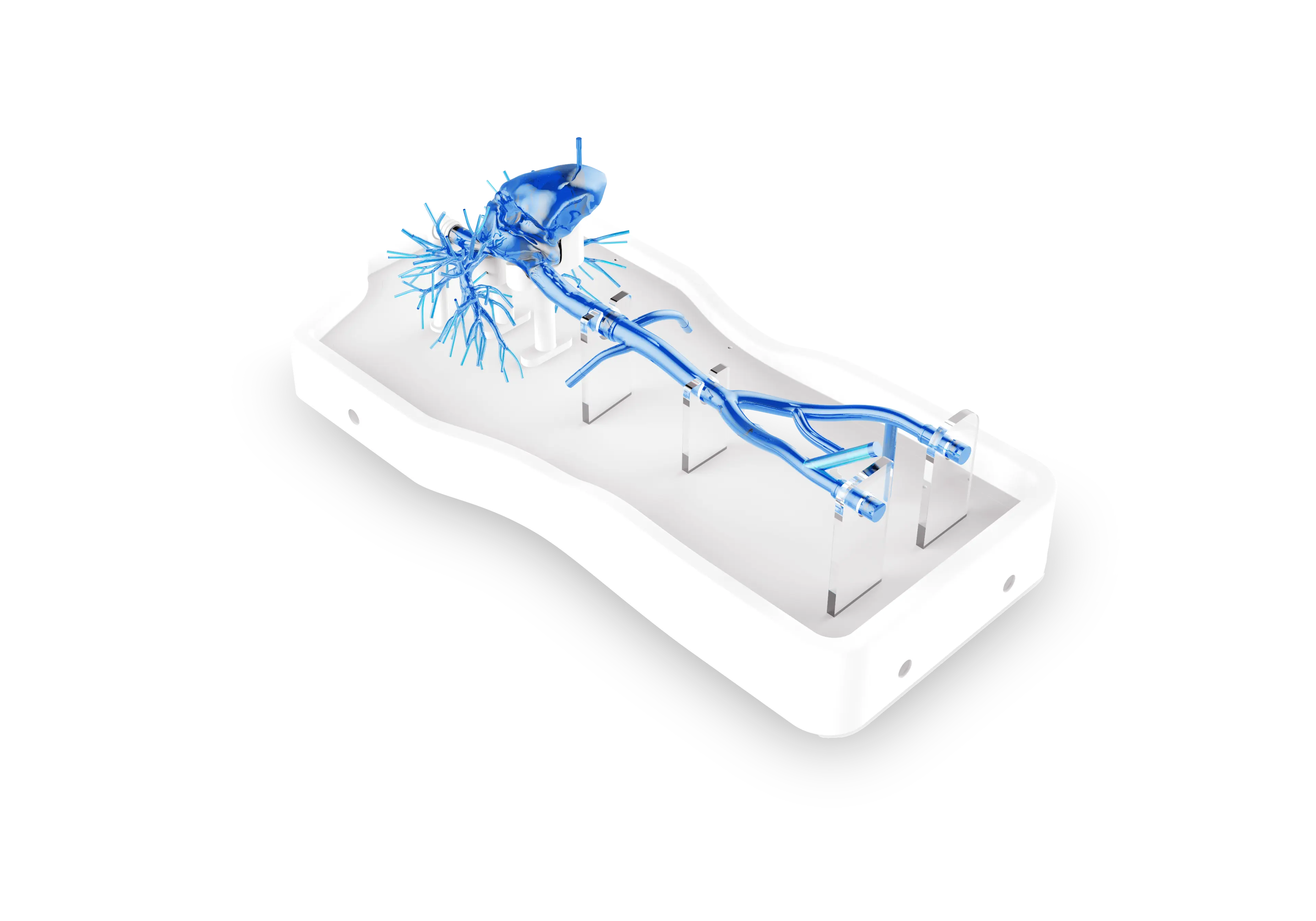

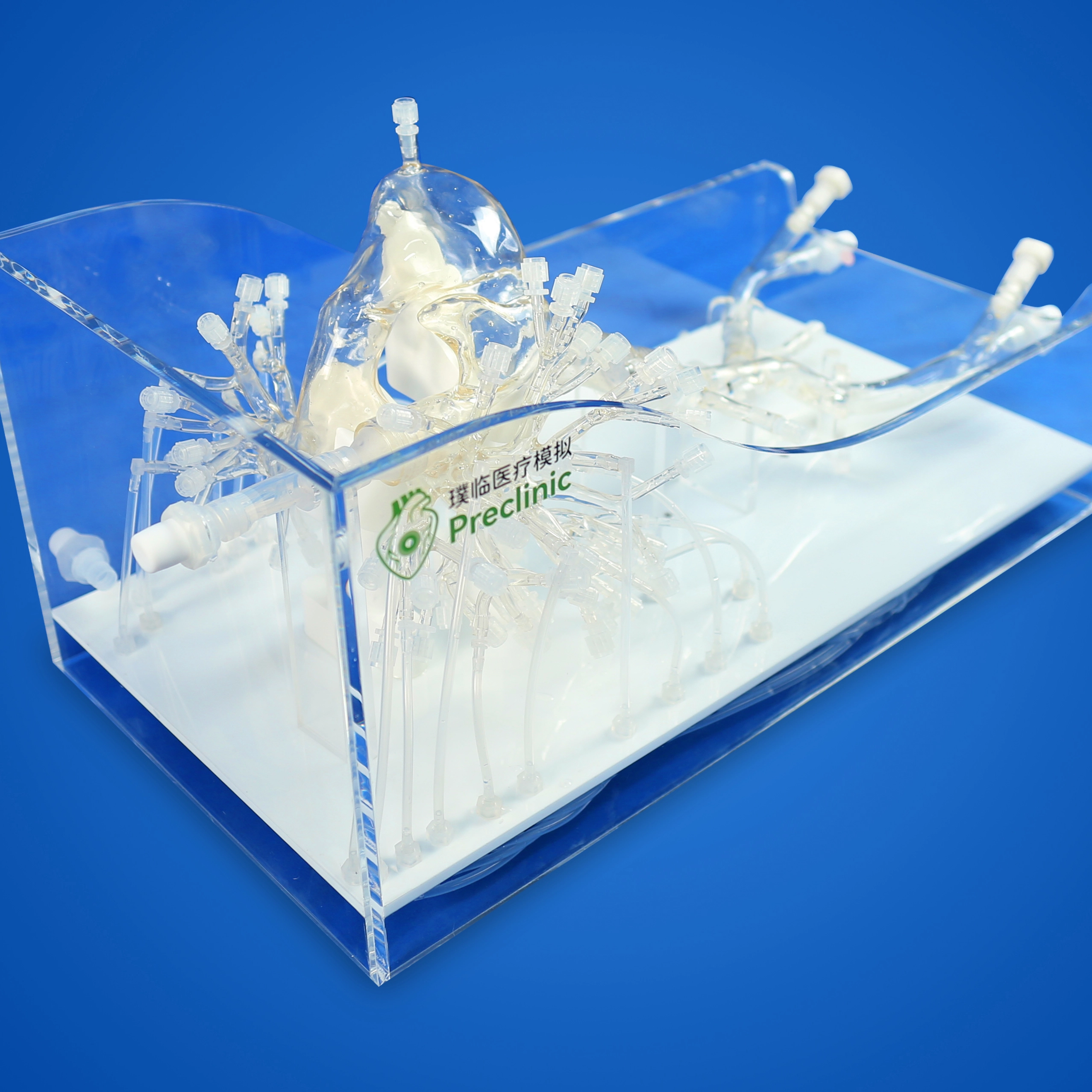

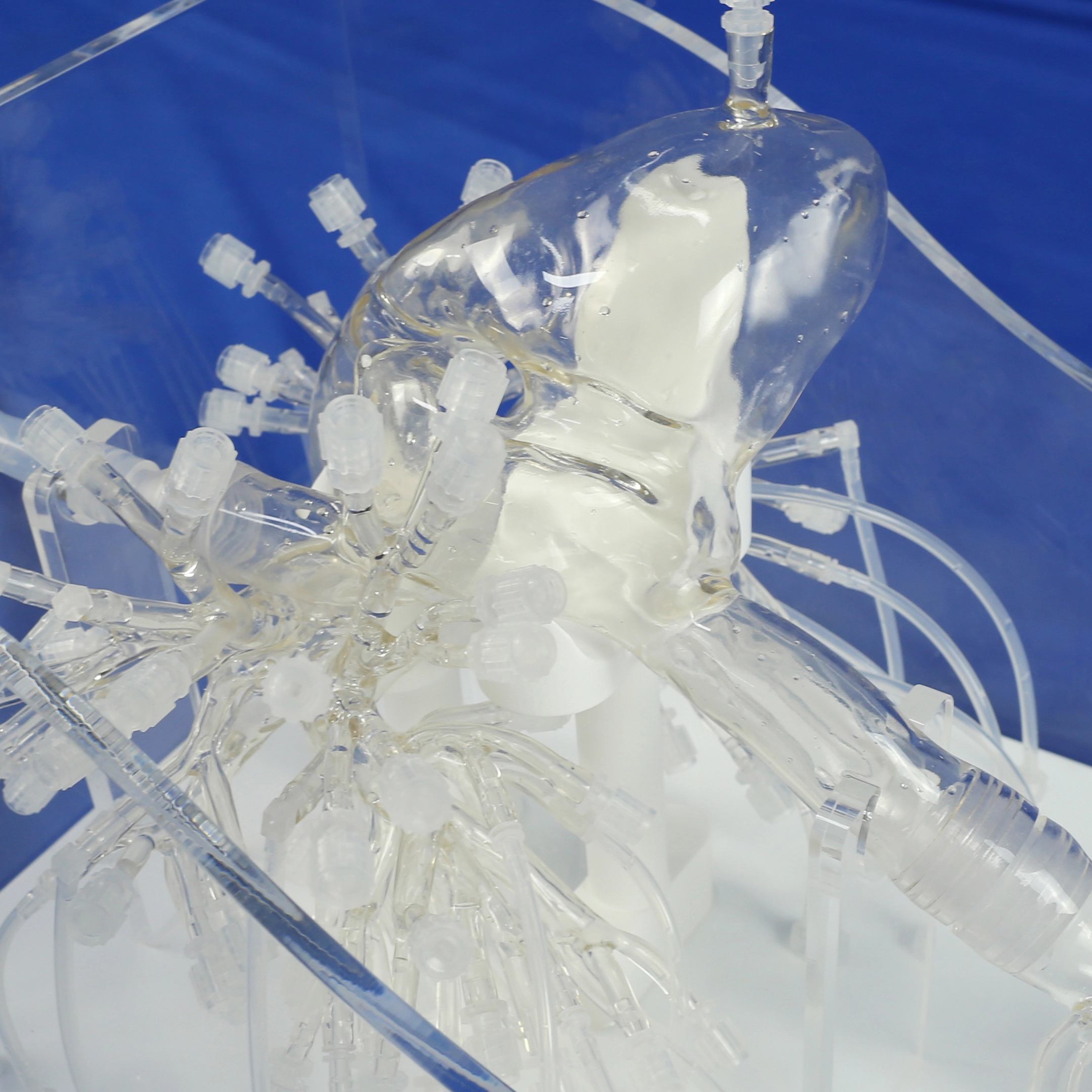

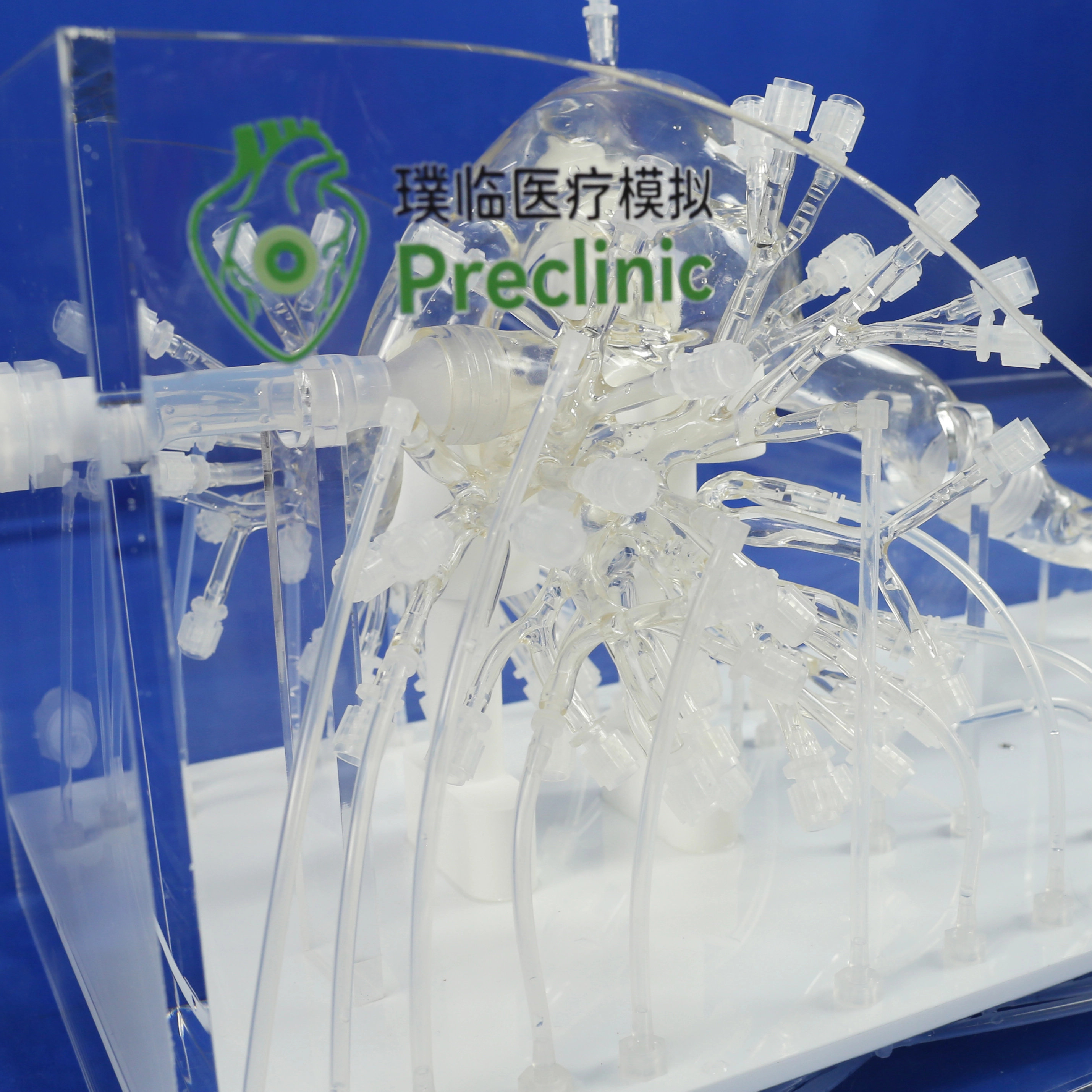

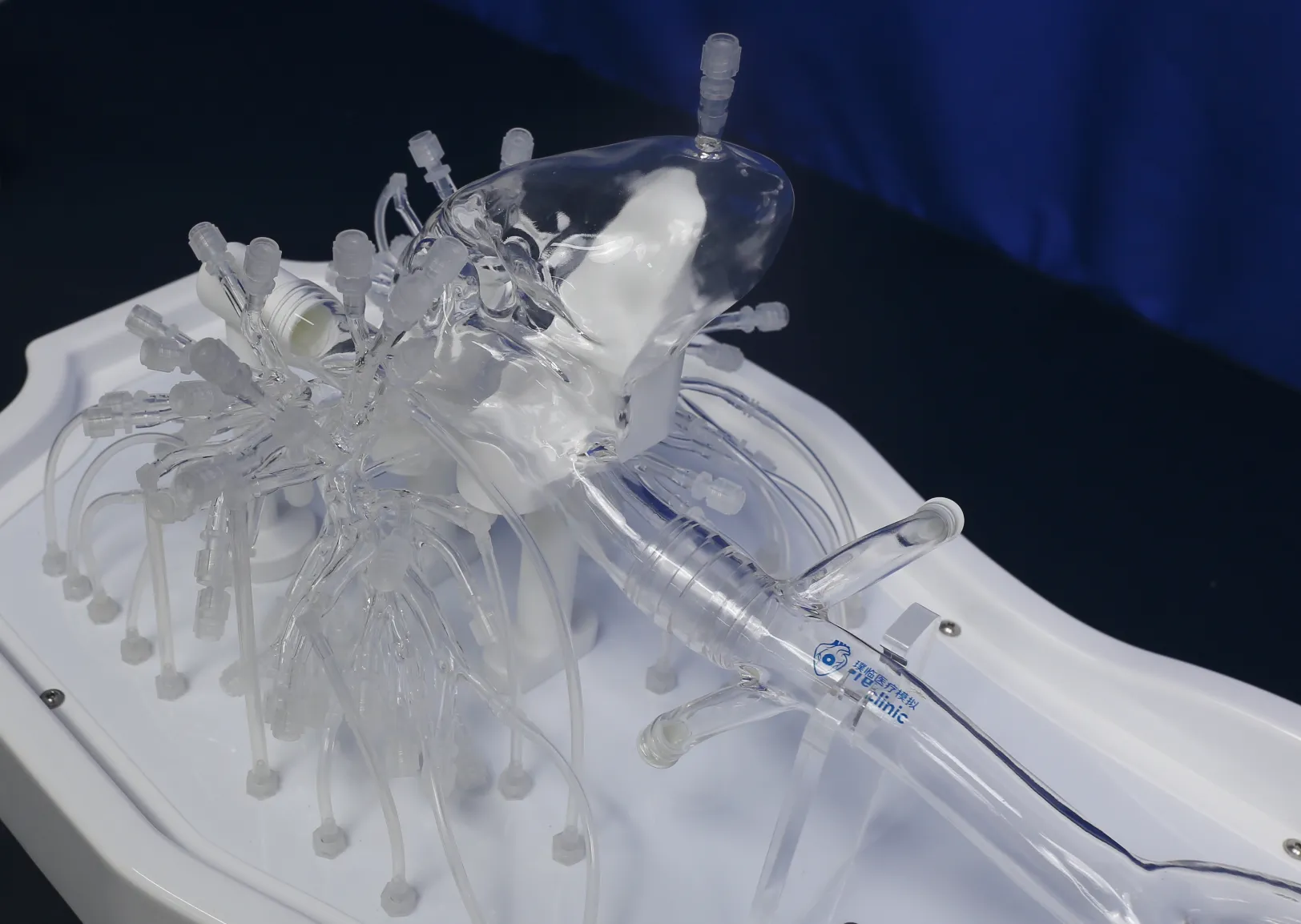

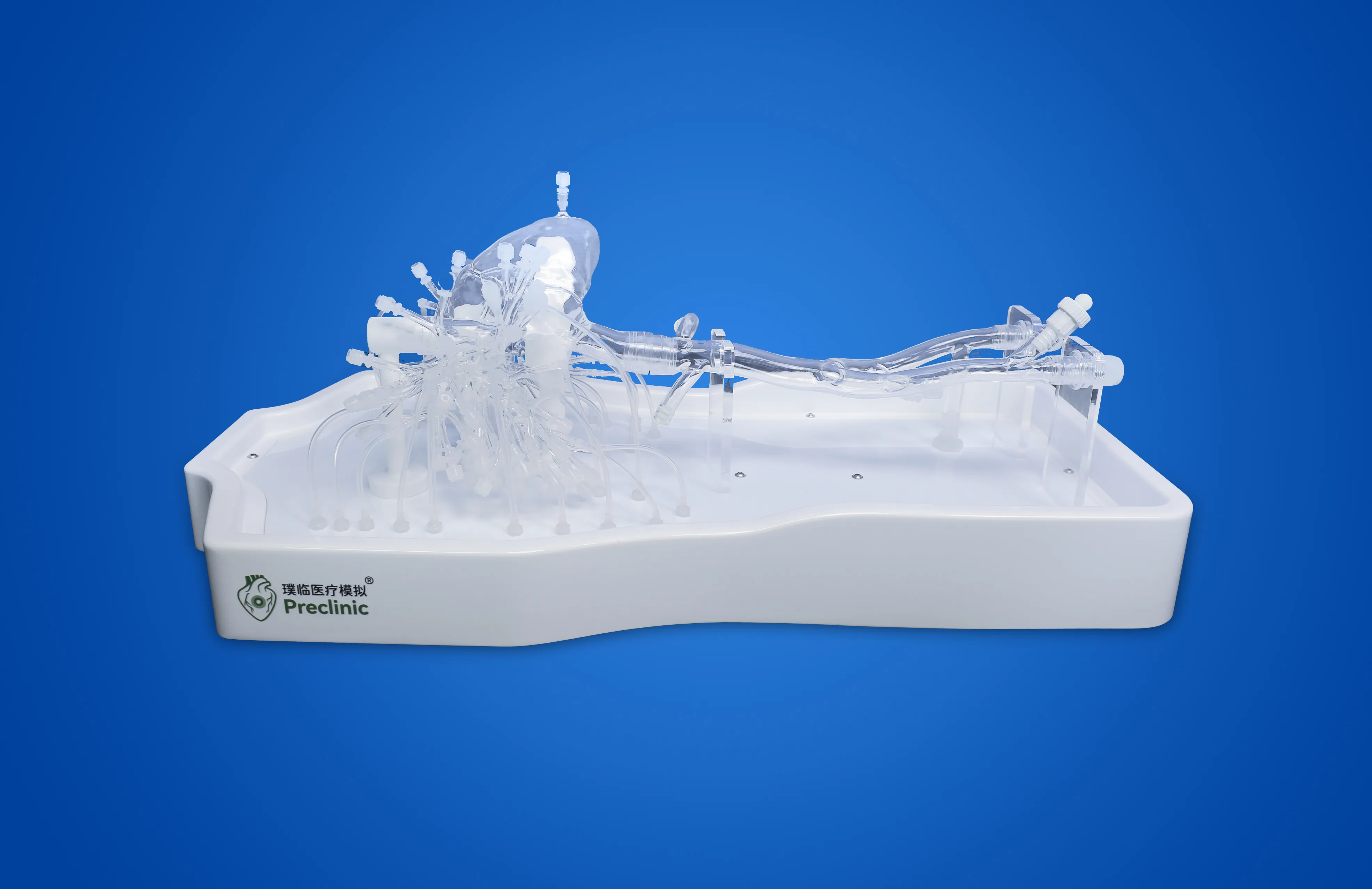

The product is based on Chinese clinical CT/MRI imaging data, accurately replicating the complete anatomical structures of the right atrium, pulmonary artery (including 4-5 branches), inferior vena cava, iliac vein, femoral vein, etc. at a 1:1 ratio. The main body is made of high transparency food grade silicone, matched with a transparent acrylic base, supporting the operation of right heart pulmonary artery intervention instruments such as guide wires, catheters, vascular stents, spring coils, and thrombectomy stents.

Specification of Right Cardio-Pulmonary Artery Simulation Model

Features	1: 1. Restore the anatomical dimensions of the right heart pulmonary artery in Chinese people, with blood vessel hardness and elasticity close to human tissue; The high transparency silicone material (transparency ≥ 90%) can clearly observe the movement trajectory of the instrument inside the blood vessels, which is suitable for the visualization needs of surgical operations. Support core interventional training such as pulmonary angiography, aneurysm surgery, thrombectomy, and pulmonary artery stenosis surgery, compatible with testing of various instruments such as guide wires, stents, and coils;
PN	PLXZXG006
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 75 cm
	Model width:37 cm
	Model height:28 cm
Lead Time	15 days
Origin	Shanghai, China

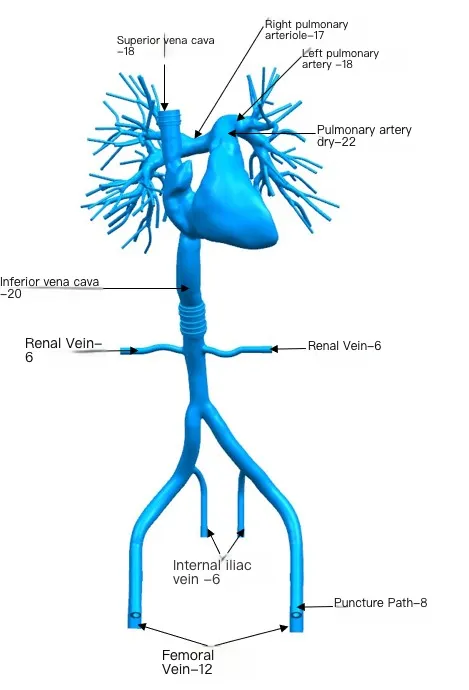

Drawing of Right Cardio-Pulmonary Artery Simulation Model

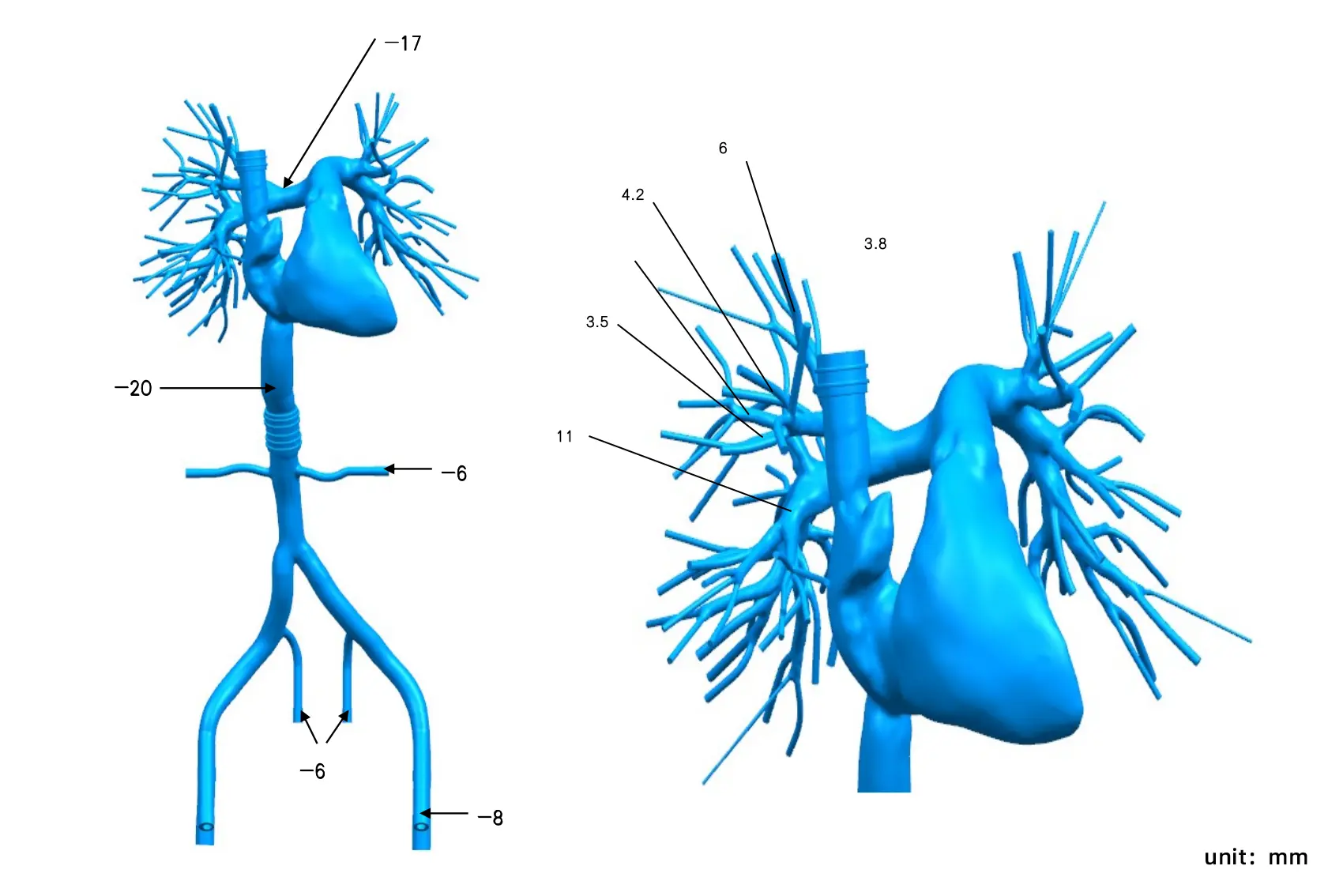

Main Dimensions of Right Cardio-Pulmonary Artery Simulation Model

FAQ On Drawing of Right Cardio-Pulmonary Artery Simulation Model

Q: What specific right heart pulmonary artery intervention surgery training and instrument testing does this model support?

A: Support core training programs such as pulmonary artery angiography, thrombectomy, and pulmonary artery stenosis surgery, and can adapt to the operation and testing of right heart pulmonary artery intervention instruments such as guide wires, catheters, vascular stents, spring coils, and thrombectomy stents; We can also customize aneurysm models of different specifications as needed to meet the training needs of special scenarios.

Q: What additional equipment does the model need to be paired with to simulate blood flow conditions? Is the connection and usage complicated?

A: Optional pulse pump, temperature controlled water tank, and power supply (not included as standard) can be configured. Blood flow simulation can be achieved by connecting the model inlet and outlet through pipelines, and blood flow temperature, pressure, flow rate, and pulse parameters can be adjusted; The connection process is simple. After connecting the pipeline according to the markings, inject pure water and lubricant to ensure that there is no leakage in the seal before starting to use. The accompanying manual provides detailed operating instructions.
