Superior And Inferior Vena Cava - Lower Extremity Vein Simulation Model

The product is designed based on 1:1 clinical CT/MRI imaging data of Chinese people. The main body consists of a high transparency soft silicone lower limb arteriovenous vessel model and a humanoid plastic shell base. It is equipped with optional devices such as a pulse pump and a temperature controlled water tank, which can accurately simulate key parameters such as temperature, pressure, flow rate, and pulse of blood flow in the blood vessels, perfectly restoring the texture of instrument operation. It is widely used for interventional instrument testing and evaluation, surgical skill training, and product function display.

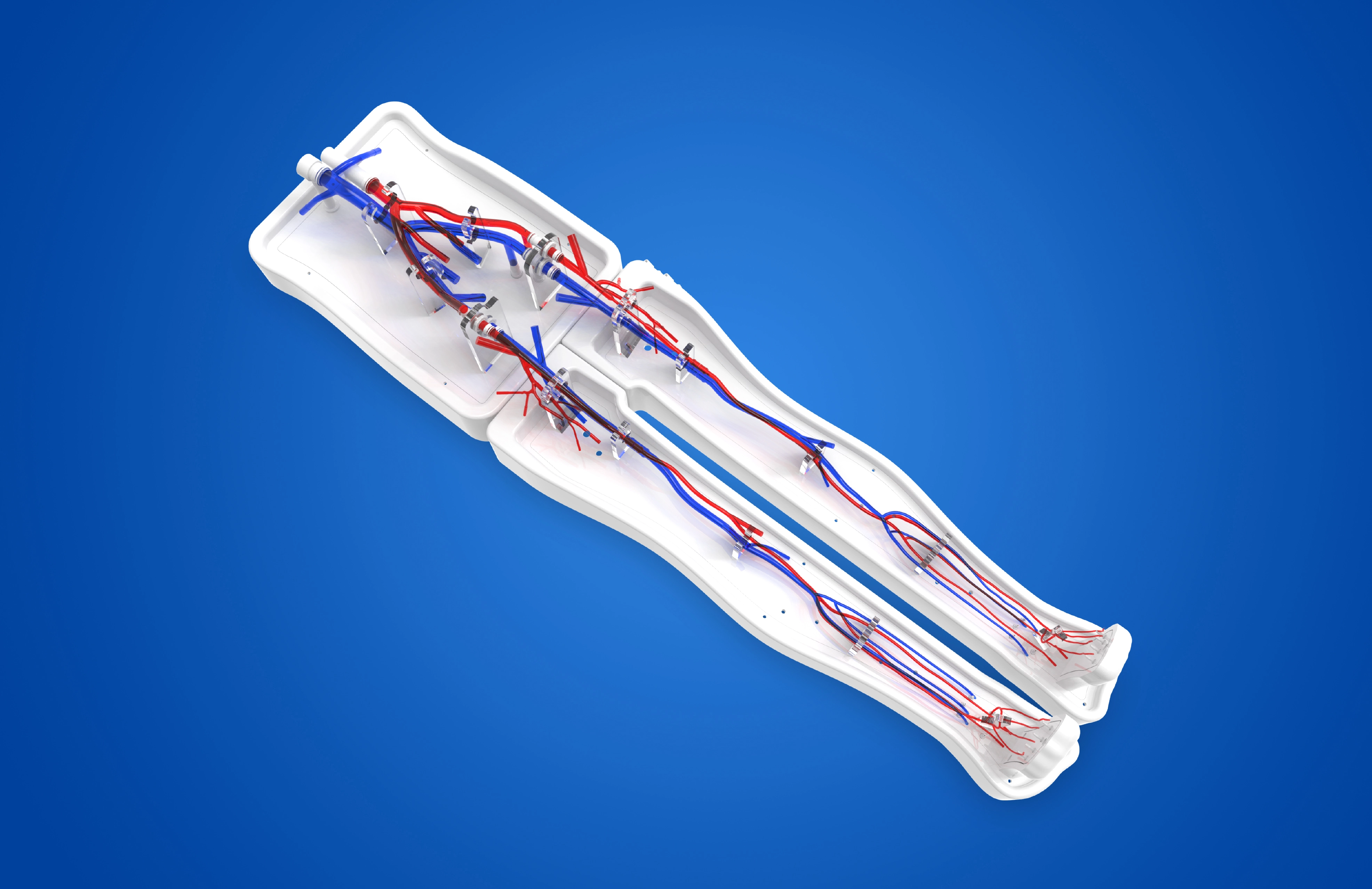

Specification of Lower Limb Arteriovenous Model

Features	Based on the modeling of real human imaging data, the inner diameter and anatomical structure of arterial and venous vessels are replicated at a 1:1 ratio. The size of lesions such as stenosis and aneurysms is in line with clinical practice, and the operating feel is highly consistent with the real state of the human body. The core vascular modules such as iliac artery, femoral artery and vein, and popliteal artery and vein can be disassembled and replaced separately, supporting customized models of lesions such as aneurysms and vascular stenosis, reducing usage costs, and adapting to diverse training and testing needs. Compatible with neurovascular intervention instruments such as guide wires, catheters, and vascular stents, supporting peripheral arterial and venous multi site imaging, interventional procedures, stent placement, and other surgical training, while meeting the requirements of instrument performance testing and product display.
PN	PLWZXG005
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 125 cm
	Model width: 53 cm
	Model height: 24cm
Lead Time	15 days
Origin	Shanghai, China

FAQ On Lower Limb Arteriovenous Model

What specific scenarios can this model be used for?

Answer: Mainly applicable to three types of scenarios: ① Performance testing and evaluation of neurovascular intervention instruments (guide wires, catheters, stents, etc.); ② Training on surgical skills such as imaging, interventional procedures, and stent placement for multiple peripheral arterial and venous sites (iliac artery, femoral artery and vein, popliteal artery and vein, etc.); ③ Functional display and promotion of interventional medical products.

Does the model support lesion customization and do additional devices need to be used in conjunction with it?

Answer: Support customization of different specifications of lesion models such as aneurysms and vascular stenosis according to needs, and adapt to personalized training needs; The basic configuration includes standard accessories such as silicone tubing, adapters, and hemostatic valves. If you need to simulate blood flow characteristics, additional matching devices such as pulse pumps and temperature controlled water tanks can be selected to achieve accurate simulation of temperature, pressure, flow rate, and other parameters.

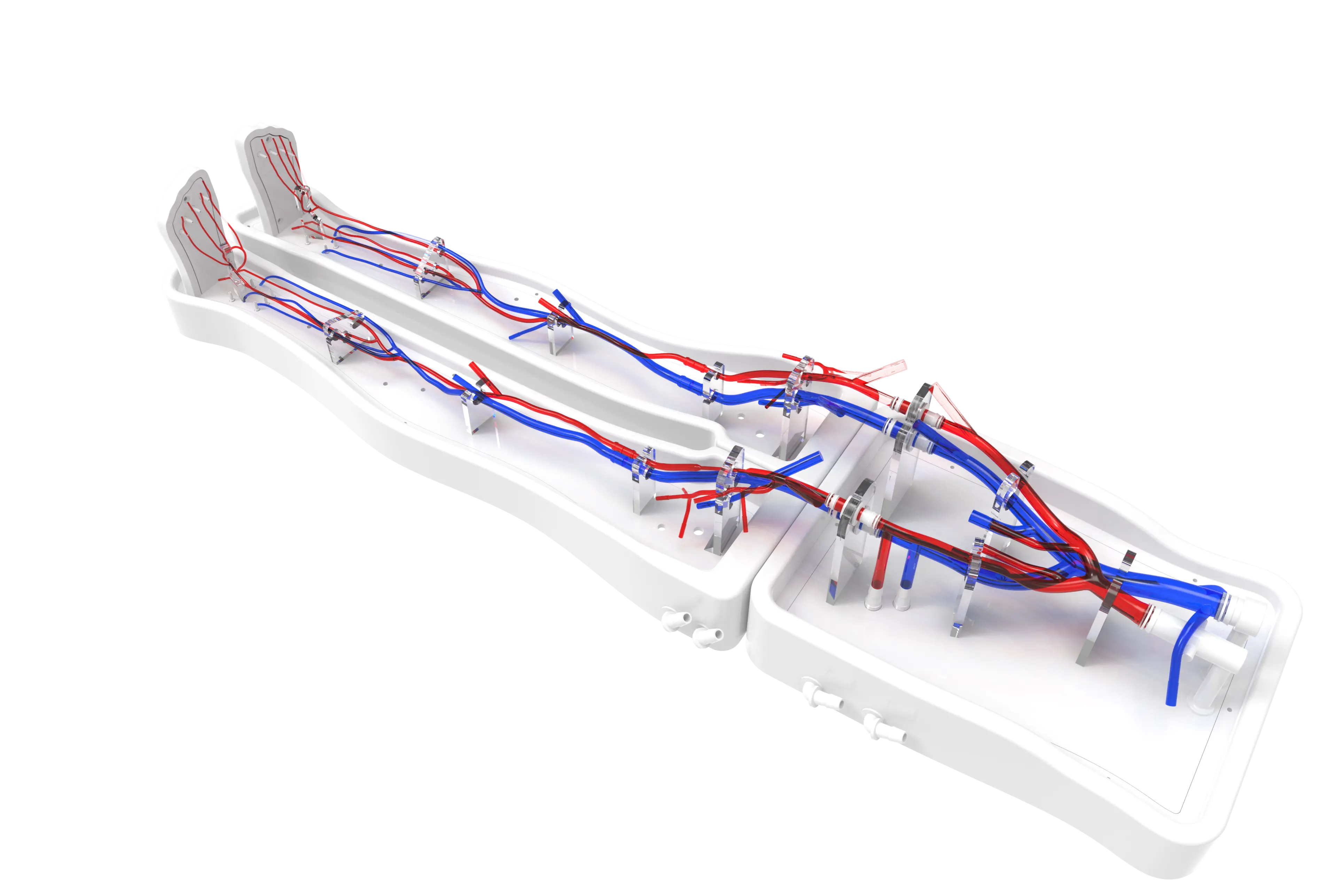

Main Dimensions of Lower limb arteriovenous model

Drawing of Lower Limb Arteriovenous Model_copy20260109180643

Main Dimensions of Lower limb arteriovenous model
