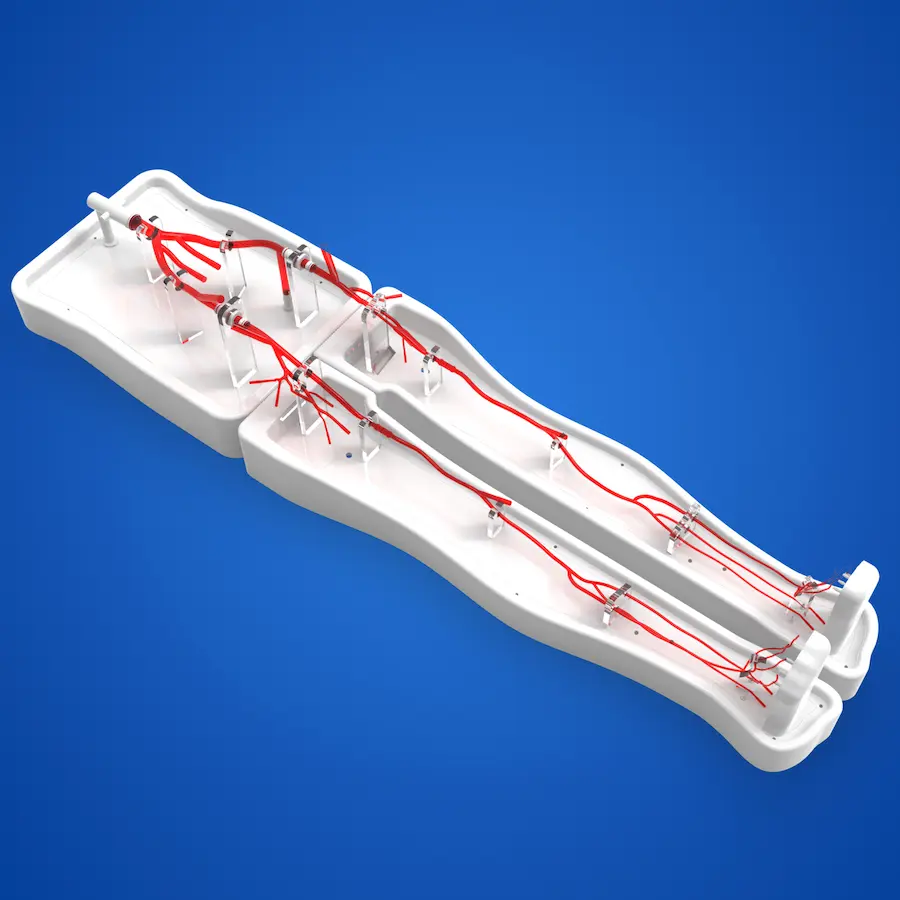

Lower Extremity Artery Simulation Model

Name: Lower Extremity Artery Simulation Model
Brand: Preclinic Medtech (Shanghai) Co., Ltd.
Availability: InStock

Focusing on the core scenarios of lower limb arterial intervention, supporting surgical training such as stent implantation and delivery system operation, and compatible with testing of various lower limb arterial intervention instruments; A dedicated circulation pipeline interface is designed at the end of the blood vessel, which can be connected to the blood flow system to simulate real hemodynamic characteristics and achieve full process training of "static operation+dynamic blood flow".

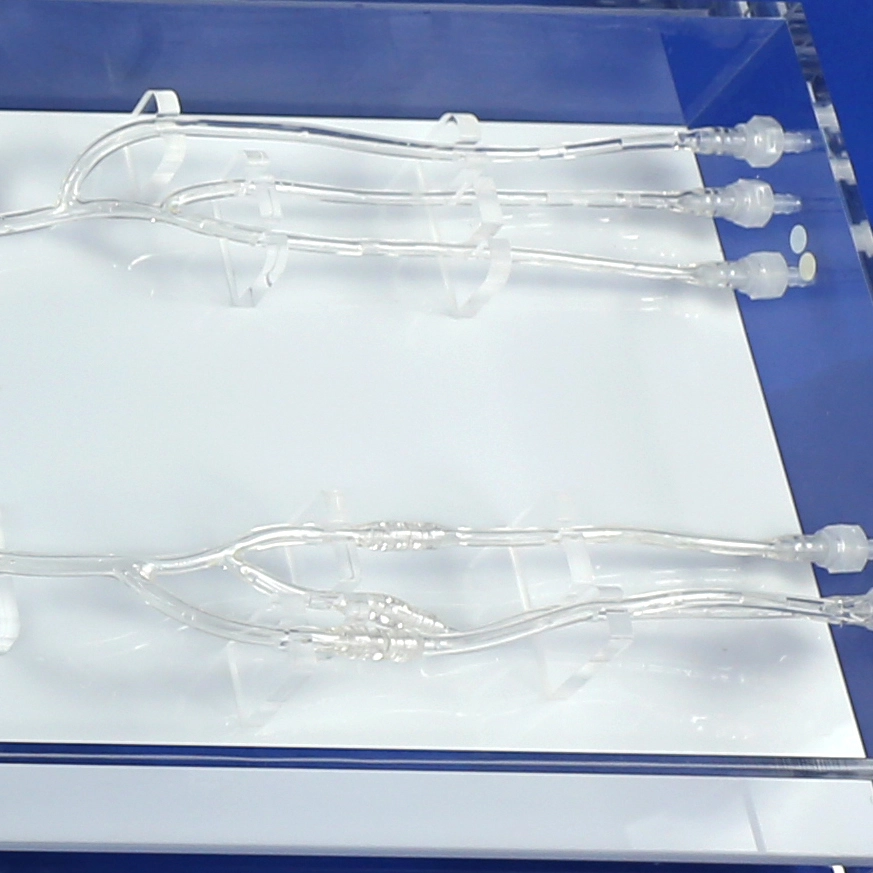

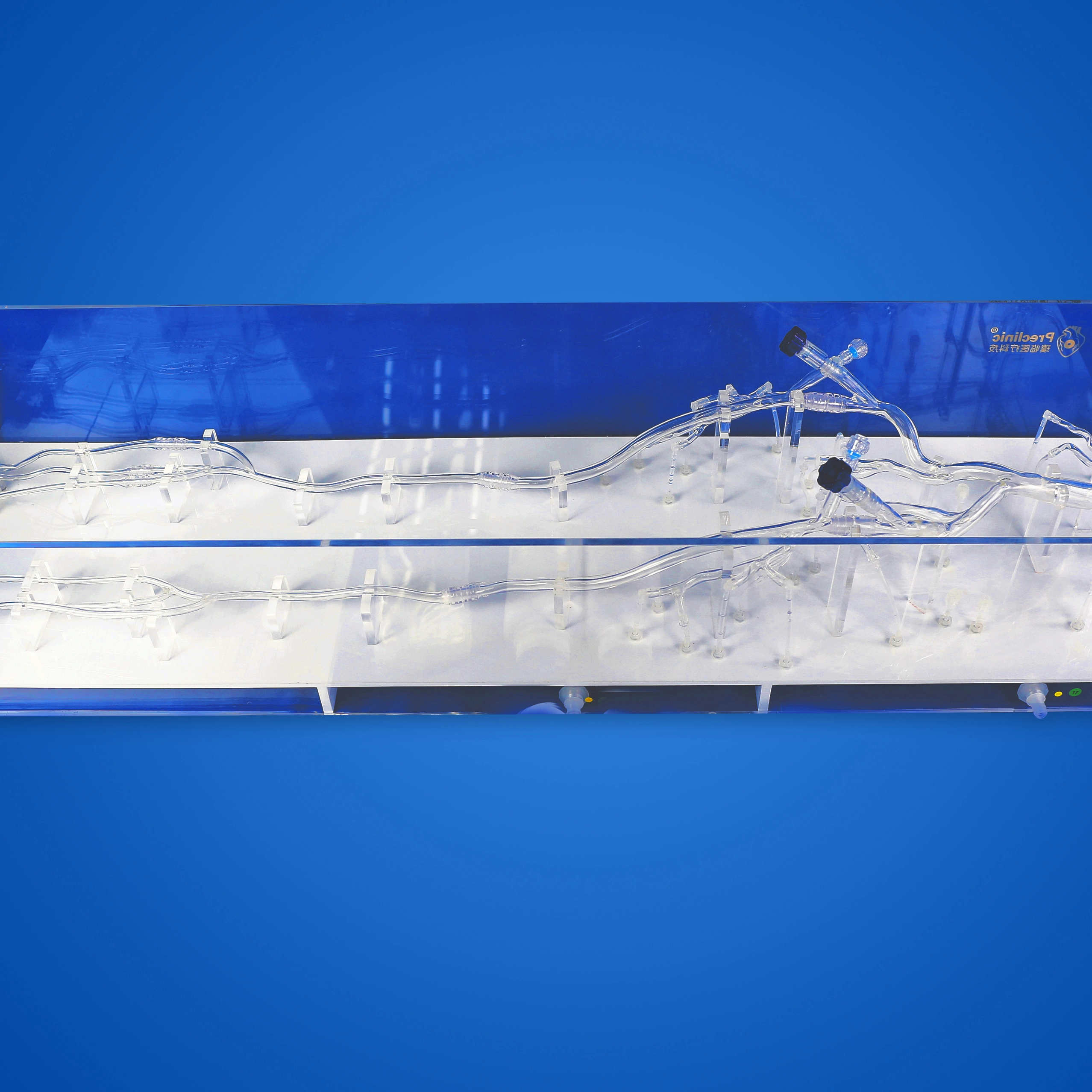

Support module replacement of popliteal artery, anterior tibial artery, posterior tibial artery, and fibular artery, which can simulate different lesion scenarios and meet the needs of repeated training and personalized case rehearsal; Reserve multiple puncture points for the left/right femoral artery and tibial artery, in accordance with the actual clinical surgical approach; Provide two shell versions, humanoid and acrylic, suitable for different teaching displays and usage scenarios.

Specification of Lower Extremity Artery Simulation Model

Features	Composition: Fixed model: Abdominal aorta, femoral artery, femoral profound artery, popliteal artery, external tibial artery, internal tibial artery, peroneal artery. Replaceable model parts: Popliteal artery, external tibial artery, internal tibial artery, peroneal artery Procedure: Lower extremity arterial stent implantation and other interventional related surgical training, and interventional surgical instrument testing. Other characteristics: This medical simulation equipment is made of transparent and soft materials, it can replace the module of arterial stenosis simulation.
PN	PLWZXG003
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 95 cm (37.4 in)
	Model width: 46 cm (18.1 in)
	Model height: 16 cm (6.3 in)
Lead Time	15 days
Origin	Shanghai, China

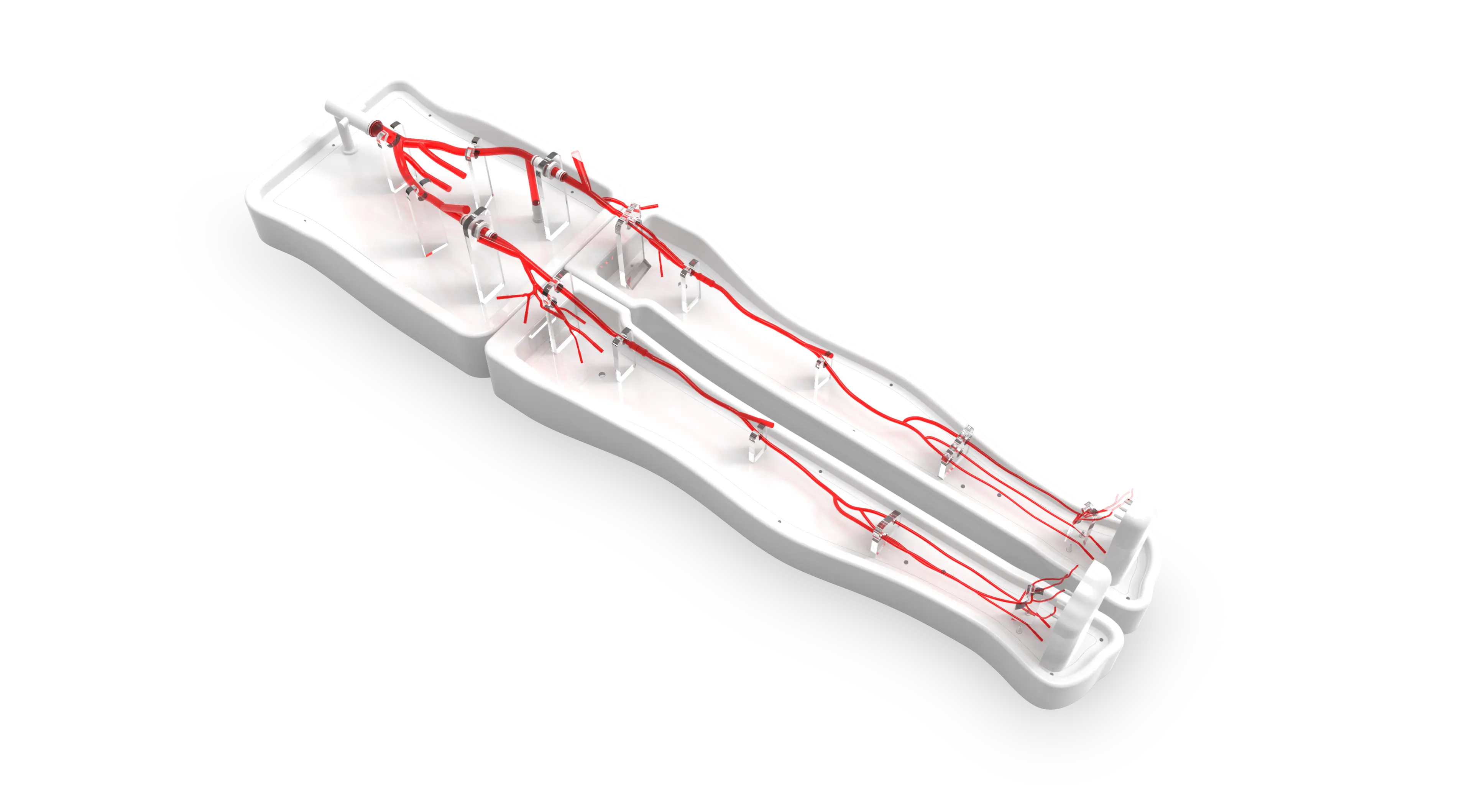

Drawing of Lower Extremity Artery Simulation Model

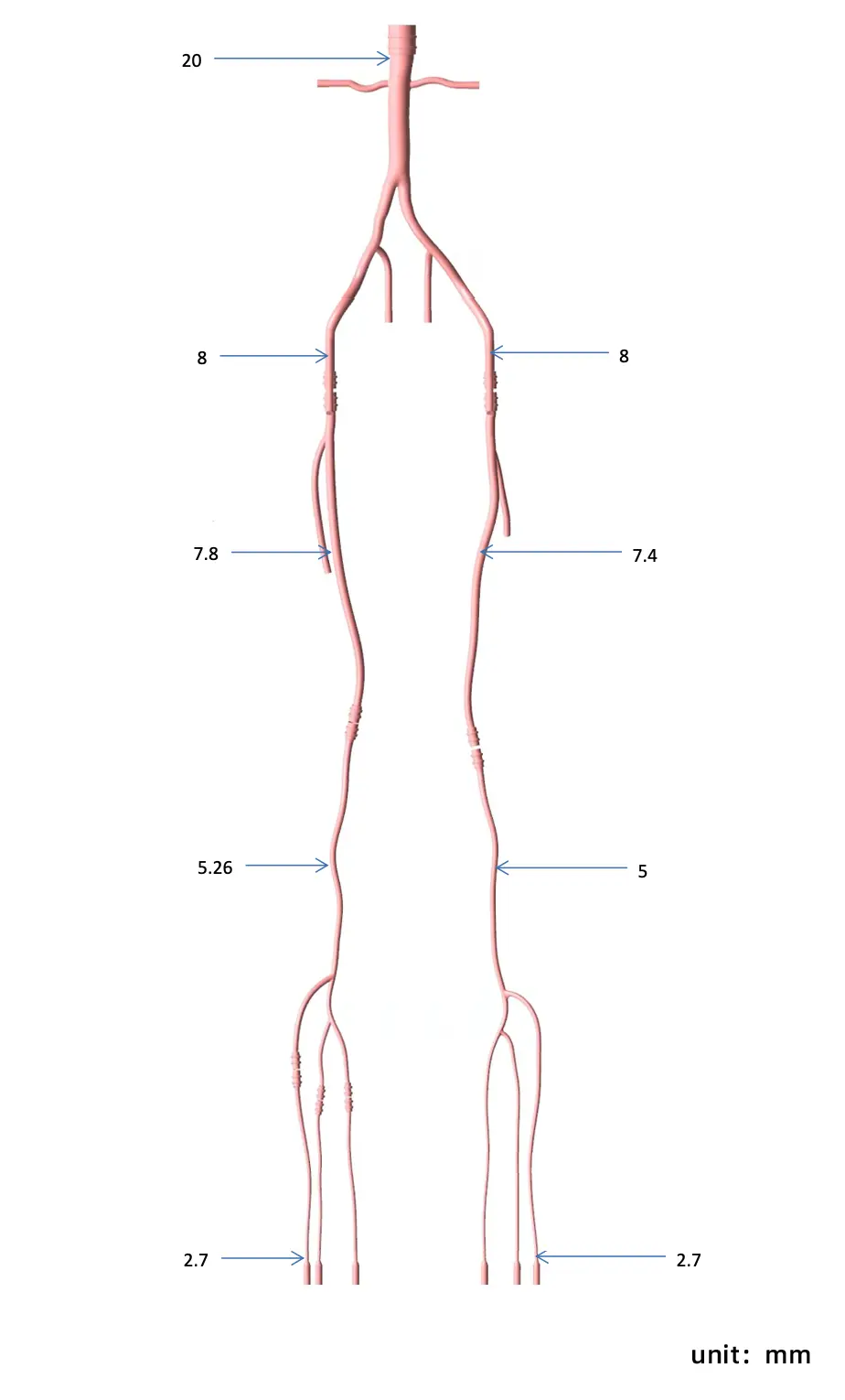

Main Dimensions of Lower Extremity Artery Simulation Model

FAQ On Lower Extremity Artery Simulation Model

Q: What specific surgical training and instrument testing does this model support?

A: The core supports simulation training for intervention related surgeries such as lower limb arterial stent implantation and delivery system operation, and can also be used for performance testing of lower limb arterial intervention surgical instruments (such as stents, guide wires, catheters, etc.), accurately matching the skill improvement and instrument validation needs in the field of lower limb arterial intervention.

Q: What are the replaceable modules of the model? Where is the puncture point set?

A: The replaceable modules include the popliteal artery, anterior tibial artery, posterior tibial artery, and fibular artery. By replacing the modules, different scenarios of distal arterial lesions in the lower limbs can be flexibly simulated to meet the needs of repetitive training. The puncture points are set in the left femoral artery, right femoral artery, and tibial artery, all of which are commonly used approaches for lower limb arterial intervention surgery in clinical practice, and are in line with real surgical operating habits.
