Name: Large flow pulsation pump
Brand: Preclinic Medtech (Shanghai) Co., Ltd.
Availability: InStock

Large flow pulsation pump

This product is used to generate periodic pulsating fluids, simulate human heart beating, and dynamically simulate arterial and venous blood vessels, including periodic pulsating circulation, liquid temperature control, and pressure monitoring. It can be used for relevant experimental research by medical R&D personnel. The liquid circulation module can achieve liquid heating, temperature control, and circulation. The control module can control the amplitude, frequency, flow rate, pressure, and temperature of the driving motor.

Specification of Large flow pulsation pump

Features	Accurate biomimetic pulsation simulation: It can generate periodic pulsating fluids, reproduce human heart beats, achieve dynamic simulation of arterial and venous blood vessels, adapt to customized artificial simulated blood vessels, and assist in the performance evaluation of delivery, retraction, and other aspects of implantable medical devices. Multi scenario practical adaptation: It is not only an experimental power source for medical research and development, but also an auxiliary equipment for instrument operation training for doctors/R&D personnel, helping to improve surgical proficiency and shorten actual surgical time. High quality configuration+precise control: Made of aluminum alloy sandblasted oxide material, paired with an 8-inch central touch screen, supporting precise adjustment of parameters such as flow, pressure, temperature, etc., and can also be equipped with professional sensing equipment for enhanced monitoring.
PN	PLPTXG003
NW	10KG
Product Parameters	Fluid medium：Water, glimpse, blood flow simulation Voltage/Frequency：90~240VAC/50~60Hz Pulsation frequency：20~180 Beat/min Cardiac output：5.5 L/min@Max (72 Beat/min) Pressure range：0~250mmHg Pressure accuracy：±2mmHg Control accuracy：±0.5℃ Maximum power：850W
Product Size	Model length: 29 cm Model width: 16 cm Model height: 29 cm
Lead Time	15 days
Origin	Shanghai, China

FAQ On large flow pulsation pump

Q1: What scenarios is this high flow pulsating pump mainly used in?

Answer: It is mainly suitable for customized artificial simulated blood vessels, which can be used for medical research and development, as well as serving as a training source for doctors/R&D personnel to assist in improving operational proficiency.

Q2: Is the equipment operation complicated? Can experimental data be exported for analysis?

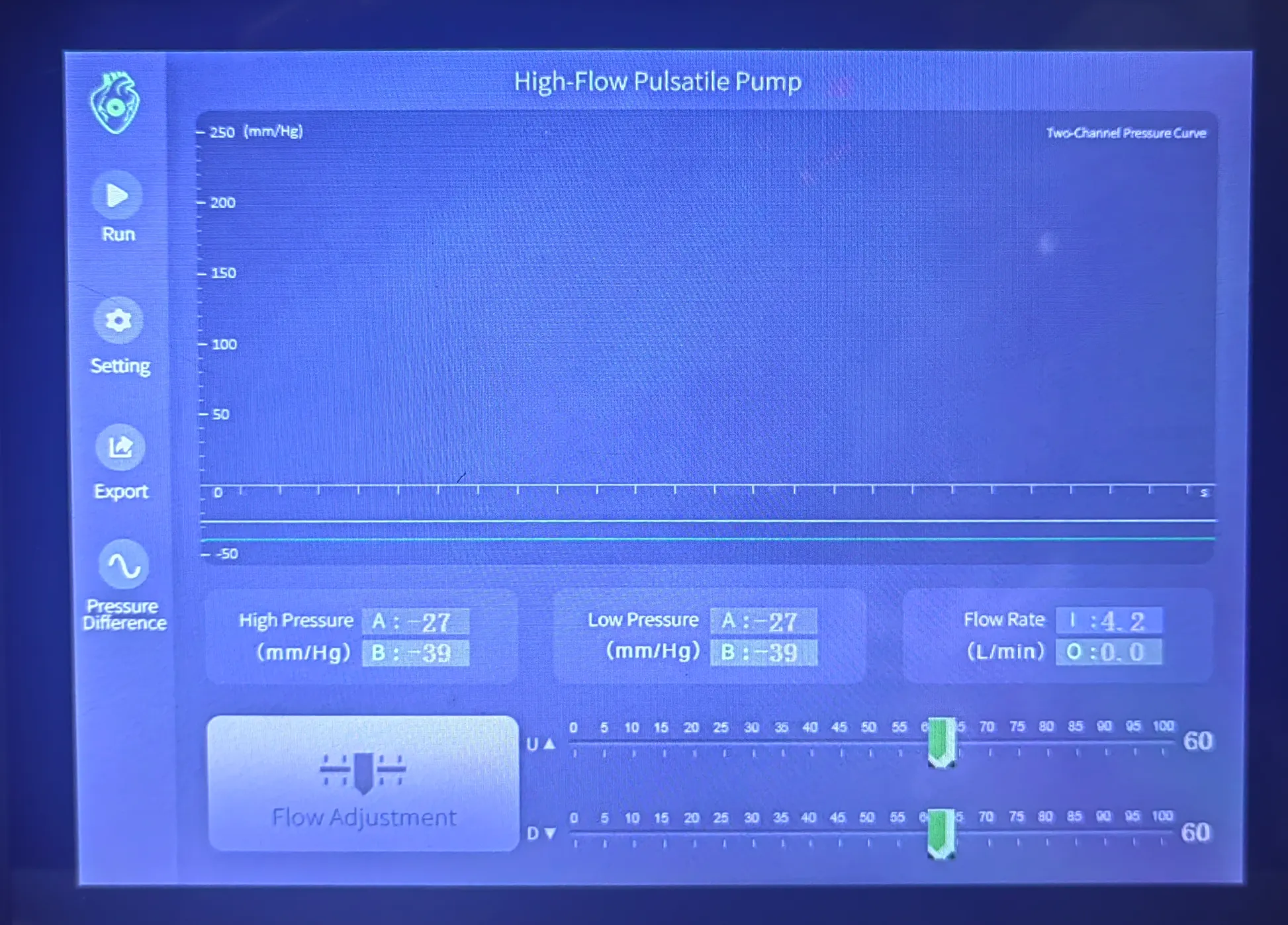

Answer: The operation is very simple, the interface function of the 8-inch central control touch screen is clear, and parameters such as frequency and flow can be adjusted by simply clicking on them; Simultaneously supporting data collection, the pressure, pressure difference, flow rate and other data of two channels can be generated into txt text for export, facilitating subsequent analysis and traceability.

Q3: Is equipment maintenance troublesome? How durable is it?

Answer: Maintenance is not complicated, the device comes with an automatic cleaning function, which can remove impurities and liquids inside the model, making it easy to reuse the model; Moreover, after 500000 consecutive fatigue tests at the factory, the stability and durability of the equipment's operation are guaranteed.
