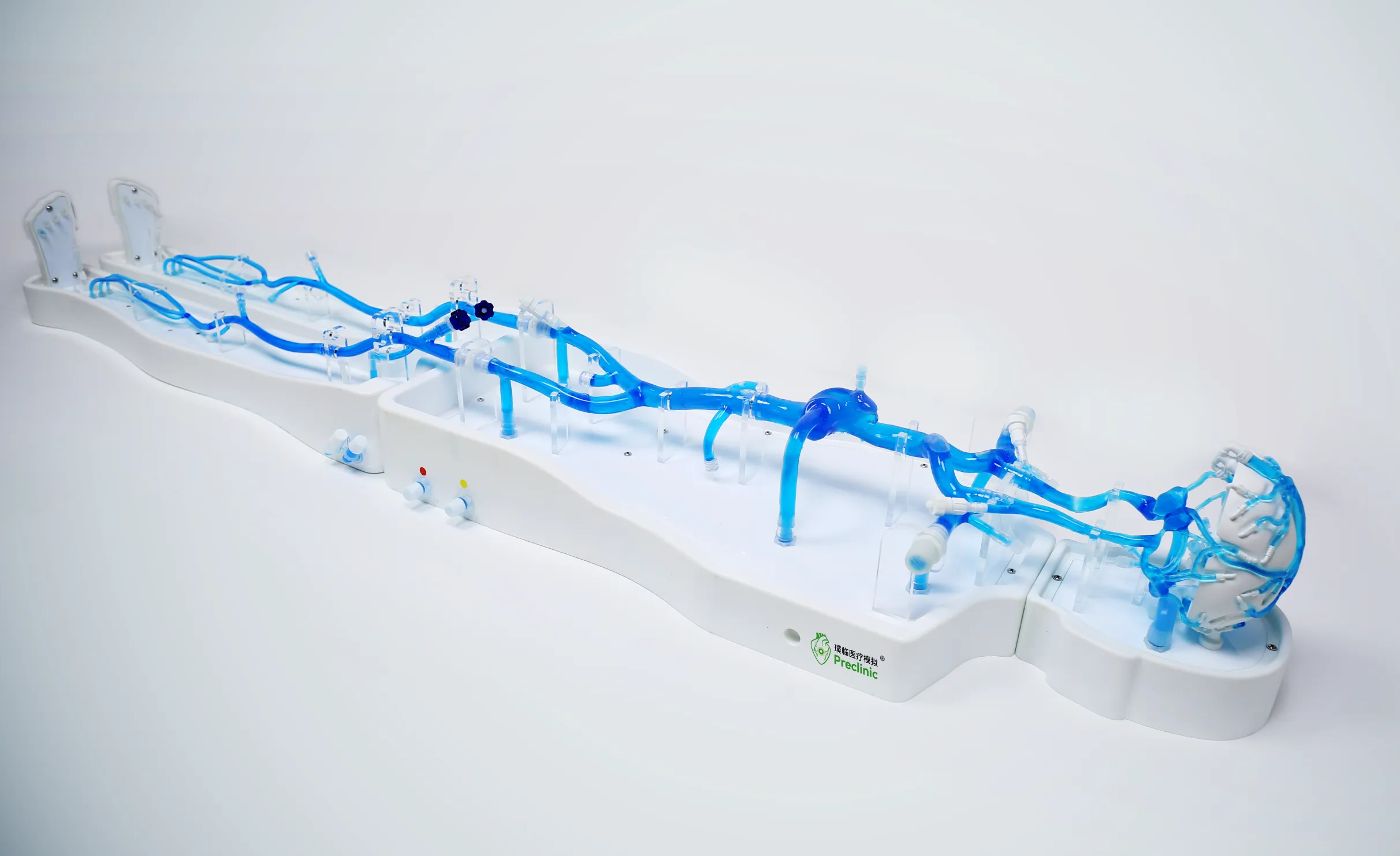

Modular whole-body vascular model

The whole shell is humanoid design, full transparent shell; The blood vessels are reconstructed based on real CT/MRI data, and the main arteries of the human body are integrated. The flexible and transparent silica gel material is used, which has rich details and is highly simulated. The overall circulation loop design ensures that the simulated blood circulates and flows in the human model. Through the integrated control device of the bionic pulsating pump, various parameters such as temperature, pressure, flow rate and pulse are simulated, so that the whole vascular simulator system can achieve the effect of simulating the flow of real blood in the human artery. The circulatory system working model product can meet the needs of medical training, medical device evaluation and surgical training, and is suitable for education, practical training, project research and development. As one professional human circulatory system working model, please feel free to contact us for the human circulatory system 3D model price.

Specifications of Modular whole-body vascular model

Main Functions	Supports modular free combination of blood vessels throughout the body, with higher degrees of freedom; At the same time, the modular structure is easy to transport and can also adapt to personalized customer needs, flexibly matching different training/experimental scenarios. Simulation for surgical simulation operations and instrument testing. Multiple vascular access options are available, including femoral artery, torsion artery, subclavian artery, and carotid artery puncture points. Multiple lesion replacement exercises: Modular design is adopted for high-risk areas of vascular diseases, making it convenient to replace lesions with different structures and states. Multiple blood flow state simulations are conducted by using a simulated pump system to change heart rate, blood pressure, and cardiac output. Suitable for various case scenarios, adjust to the appropriate vascular flow state The operation process can be recorded: by simulating the DSA system, capturing or recording the operation scene, and repeatedly viewing or exporting it for storage on site Stay and provide support for the review and improvement of surgical simulations Provide radiation free exercise: high transparency blood vessels paired with radiation free simulated DSA equipment, allowing users to obtain without the need for X-rays Visual support for simulating vascular operation observation with humanoid appearance: improving the realism of operation practice, while simulating the surgical positioning, instrument placement, and team cooperation in actual use scenarios
PN	PLZHXG011
Main material	Highly transparent soft silica gel, hardness: 30A
Size of model of the cardiovascular system	Vascular Model length: 168.5 cm
	Vascular Model width:58.5 cm
	Vascular Model height:26.4 cm
Lead time	25days
Origin	Shanghai, China

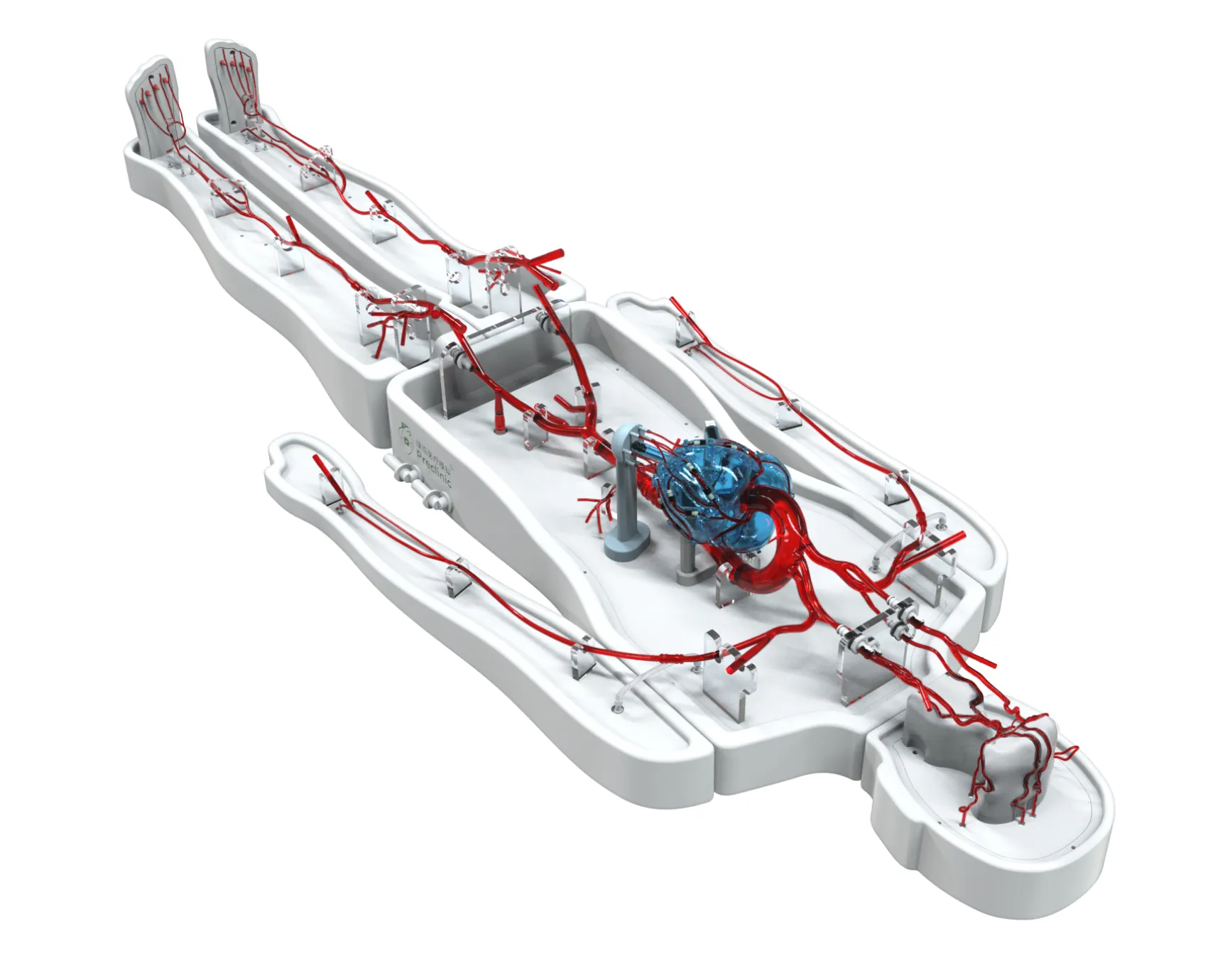

Drawing of Modular whole-body vascular model

FAQ On Modular whole-body vascular model

Q1: Does this human vascular simulation system support personalized customization to meet different intervention training/development needs?

Answer: Support. The system can be customized 1:1 based on CTA data provided by customers, and is equipped with various replaceable vascular modules such as middle cerebral artery, coronary artery, abdominal aorta, etc. It can also simulate various disease states such as aneurysms and vascular stenosis, and can flexibly adapt to training or medical device evaluation and development needs in different scenarios such as neural intervention, coronary intervention, peripheral intervention, etc.

Q2: Can the system be compatible with mainstream surgical instruments and common medical imaging technologies?

Answer: Fully compatible. In terms of instrument adaptation, real surgical instruments such as guide wires, catheters, and stents from mainstream manufacturers such as Cordis, Boston Scientific, Abbott, and Medtronic can be directly used; In terms of imaging adaptation, it is compatible with various imaging technologies such as contrast agent angiography and CT, and can be equipped with our simulated DSA system. The high-definition camera can achieve real-time image display, electronic flipping, color enhancement and other functions, and can build a complete simulated surgical imaging environment.
