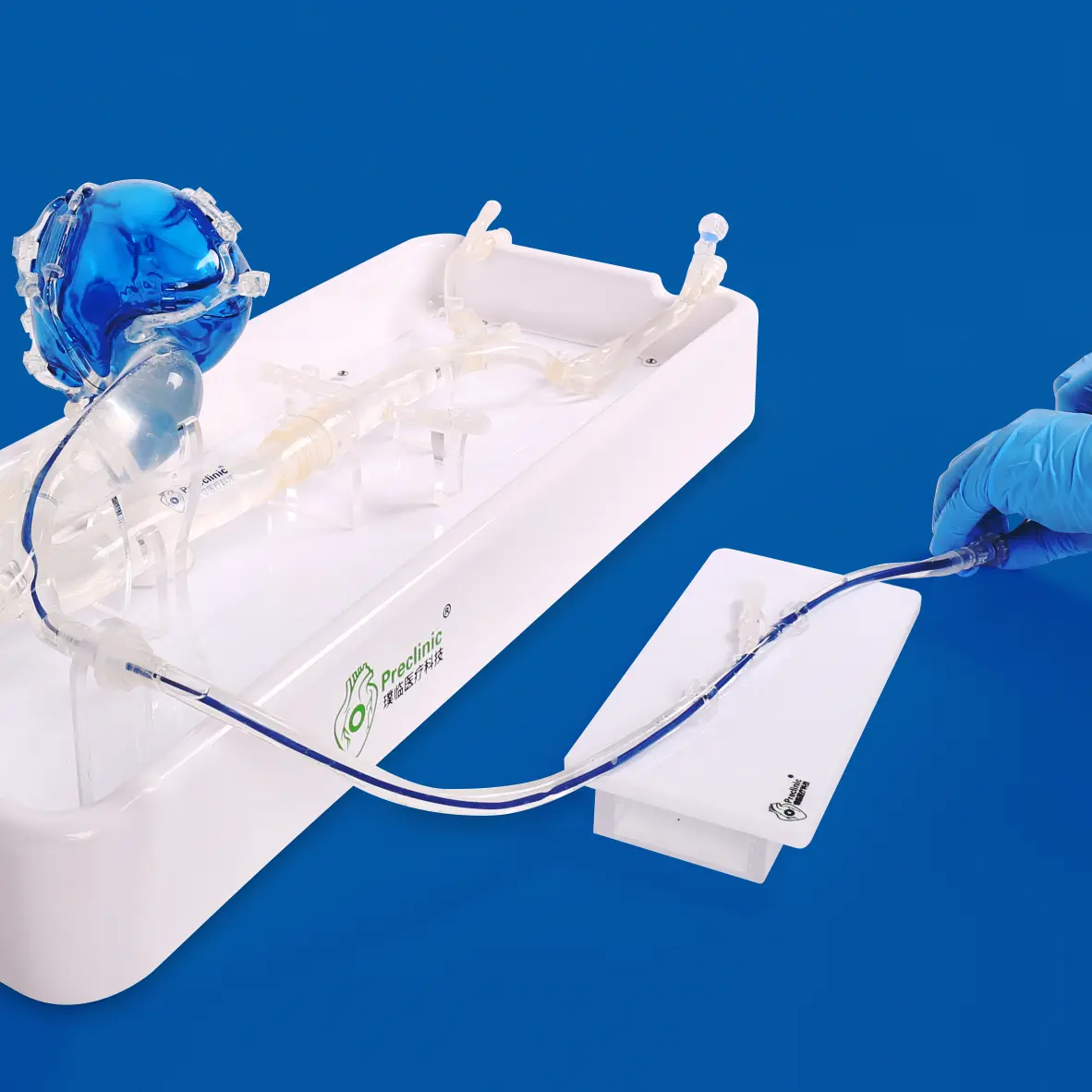

Coronary Artery Simulation Model

The 3D coronary artery model is mainly made of high transparent soft silica gel, which is used for surgical skill training related to coronary intervention diagnosis and treatment, new ability test and function demonstration of surgical instruments; The coronary artery model parts include coronary artery guide wire, catheter, stent, rotator and other instruments. Our 3D model of coronary arteries is made of high-quality materials, durable and easy to clean, making it ideal for medical education and clinical training. Each coronary arteries heart model undergoes strict quality control to ensure the accuracy and reliability of details. Choosing our coronary artery model will give you the most realistic and professional coronary artery simulation experience.

Specification of Coronary Artery Simulation Model

Features	Fully restore the anatomical dimensions and blood flow direction of core blood vessels such as the external iliac artery, thoracic aorta, and left main artery, and highly match the operating scenario of clinical coronary intervention surgery. The main blood vessels are made of food grade high transparency soft silicone, with a transparency of ≥ 90%, which allows clear observation of the movement trajectory of the instrument inside the blood vessels; The chest/abdominal blood vessels are detachable, equipped with a flexible transparent stenosis module (stent/balloon implantation training), a hard rotational grinding module (rotational grinding surgery training), and support for customizing different specifications of aneurysm models as needed to meet various types of instrument testing and surgical training scenarios. Dual approach design of femoral artery and radial artery, suitable for clinical instrument operation path; Optional devices such as pulse pumps and temperature controlled water tanks can be connected to accurately simulate parameters such as temperature, pressure, flow rate, and pulse of coronary blood flow, restoring the real surgical environment.
PN	PLXG1001
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length:63 cm
	Model width:25 cm
	Model height:22 cm
Lead Time	15 days
Origin	Shanghai, China

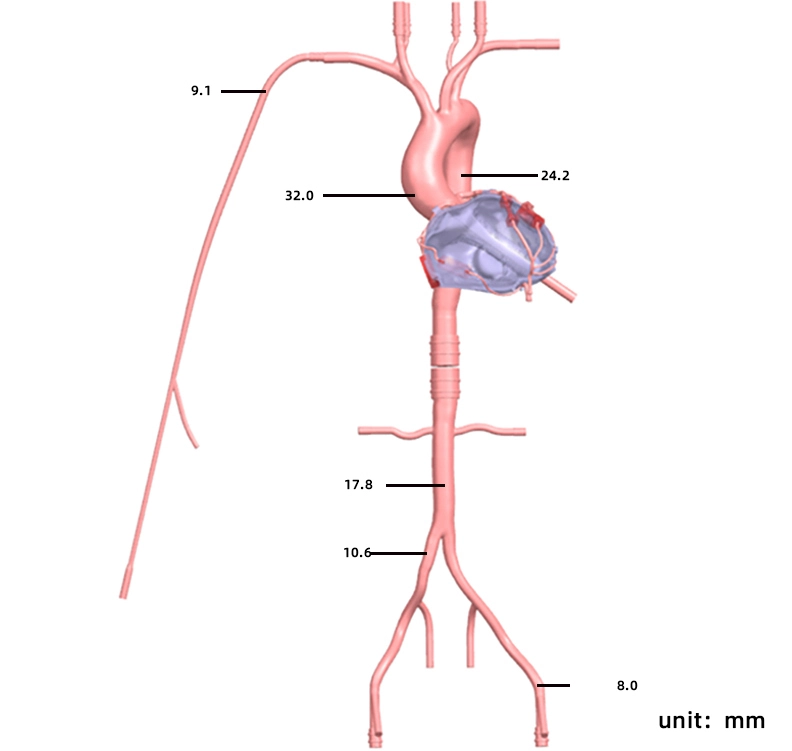

Drawing of Coronary Artery Simulation Model

3d coronary artery model supplier

FAQ On Coronary Artery Simulation Model

What instrument testing and surgical training can the coronary intervention training model support?

Answer: The model supports the testing and evaluation of coronary intervention instruments such as guide wires, catheters, vascular stents, spring coils, thrombectomy stents, and rotational grinders; It can carry out surgical training for coronary angiography, aneurysms, thrombectomy, coronary stenosis, etc., and also support customized aneurysm models as needed to meet the needs of special instruments and surgical testing.

How safe is the material of the model? Can transparency meet the needs of operational observation?

Answer: The main body of the model is made of food grade soft silicone, with a material transparency of ≥ 90%. It can clearly observe the movement, positioning, implantation and other details of the instrument in the blood vessels, as well as simulate the real tactile feedback of human blood vessels, perfectly balancing observability and practicality.

Does the product support customization? Does the supporting equipment require additional procurement?

Answer: We support customized services and can customize aneurysm models of different vascular segments and sizes as needed; Pulsation pump, temperature controlled water tank, and power supply are optional devices that require additional procurement. Air transport boxes are standard to ensure product transportation safety.

Differences in coronary artery models

Product Name	Human-shaped Shell Base	Acrylic Shell Base	Light-emitting Base Plate Configuration	Difference
Coronary Artery Simulation Model	Support	Not supported	Not supported	The heart is made of a hard shell material that only serves to support the coronary arteries.
Coronary Training Model - A	Support	Support	Support	The heart is made of a hard shell material that only serves to support the coronary arteries.
Coronary Training Model - B	Support	Support	Support	The heart is made of silicone material and connected to the root of the aorta. After connecting the pulse pump and filling the heart with water, it has a pulsatile effect. (Note: The heart cavity is empty and has no structure)
Coronary Training Model - C	Support	Not supported	Not supported	Without a cardiac shell, the coronary arteries are supported and fixed in position by a base. There are more branches at the coronary artery compared to type A and type B
