Cardiac Veins Simulation Model (Pacemaker Electrode Implantation)



Cardiac Veins Simulation Model (Pacemaker Electrode Implantation)

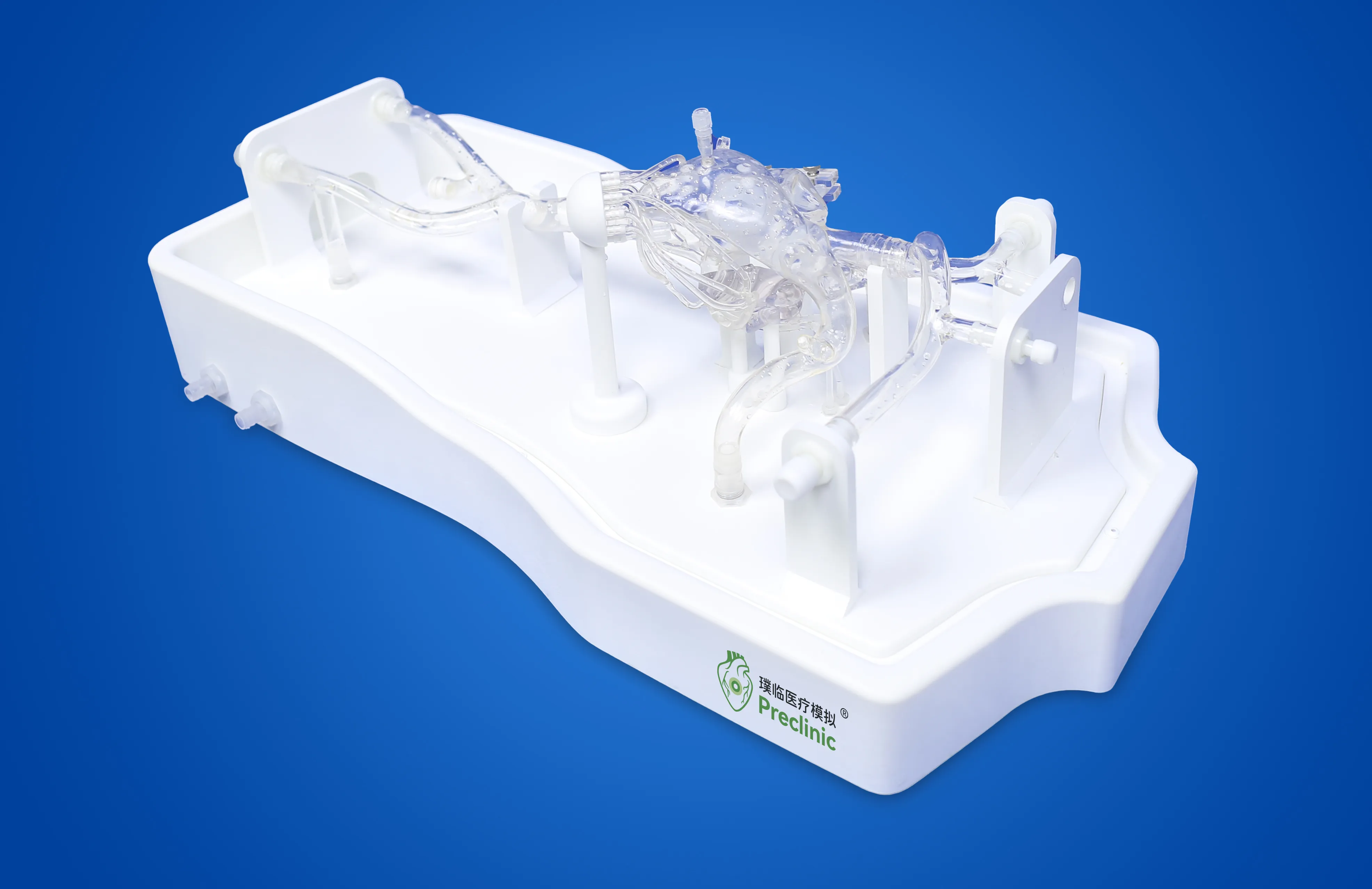

The product is based on Chinese clinical CT/MRI imaging data and accurately replicates core anatomical structures such as the inferior vena cava, right atrium, right ventricle, pulmonary artery, coronary sinus, and branches of the coronary vein in a 1:1 ratio. It covers multiple blood vessels such as the internal jugular vein, subclavian vein, superior vena cava, and iliac vein. Supporting the operation of interventional instruments such as guide wires, catheters, and vascular stents, it can simulate the training of cardiac pacemaker implantation surgery and is suitable for coronary vein intervention skill training and instrument performance testing in medical colleges, hospital training centers, and medical device enterprises.

Specification of Cardiac Veins Simulation Model (Pacemaker Electrode Implantation)

Features	1: 1. Reconstruct the anatomical morphology and dimensions of the coronary vein and surrounding blood vessels, as well as the structure of the right heart in Chinese people, certified by the Shanghai Society of Anatomy for anatomical dimensions, with guaranteed anatomical accuracy; Focusing on the core scenario of coronary vein intervention, accurately matching the training needs of cardiac pacemaker implantation surgery, compatible with testing of various types of interventional instruments such as guide wires, catheters, and vascular stents; The material is X-ray transparent and supports operation training under DSA imaging, meeting the needs of clinical surgical imaging guidance.
PN	PLXZXG001
Main Material	Highly transparent soft silica gel, hardness: 30A
Product Size	Model length: 75 cm
	Model width: 37 cm
	Model height: 28 cm
Lead Time	15 days
Origin	Shanghai, China

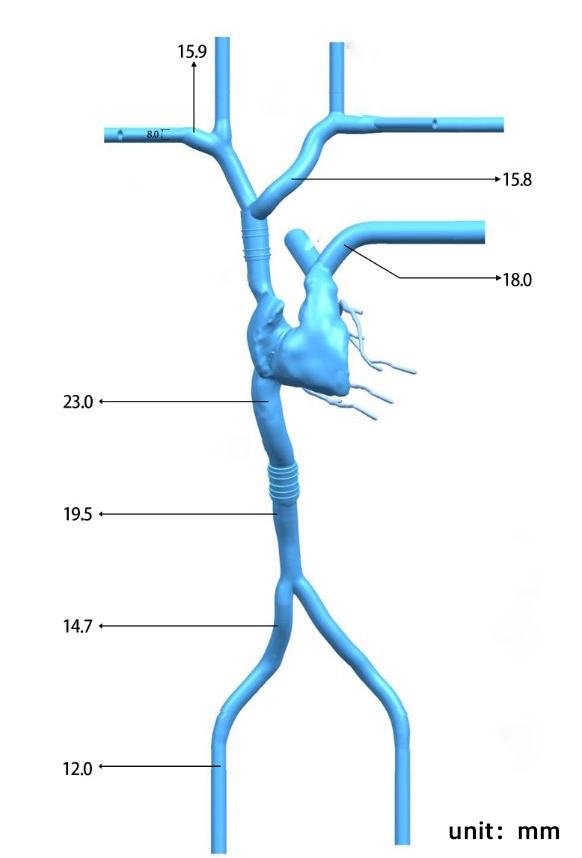

Drawing of Cardiac Veins Simulation Model

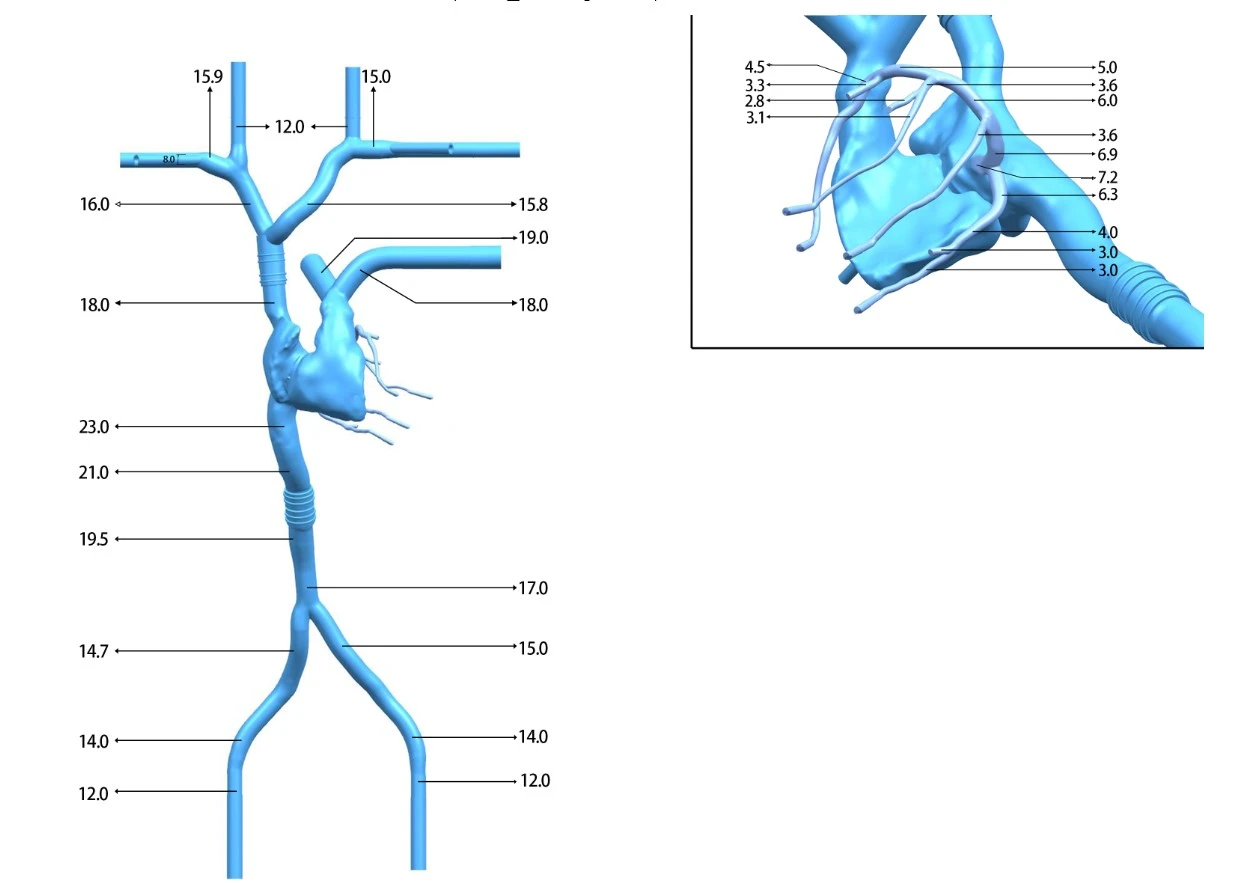

Main Dimensions of Cardiac Veins Simulation Model

FAQ On Cardiac Veins Simulation Model

Q: What surgical training does this model mainly support? What interventional devices can be adapted to?

A: The core supports simulation training for cardiac pacemaker implantation surgery, and can also adapt to the operation testing of various vascular intervention instruments such as guide wires, catheters, vascular stents, and thrombectomy stents, accurately matching the skills training and instrument performance verification needs related to coronary vein intervention.

Q: Does the model need additional equipment to achieve blood flow simulation function? Is the connection operation complicated?

A: Optional pulse pump, temperature controlled water tank, and power supply (not included as standard) are required. By adjusting the output parameters of the analog pump, the pressure, flow rate, frequency, and temperature of blood flow in the blood vessels can be accurately controlled. The model adopts a base circulating water integrated design, with clear identification of pipeline interfaces. It can be connected by following the instructions for easy operation. The accompanying manual also provides detailed assembly steps.
