Pulsation pump (Touchable display screen)

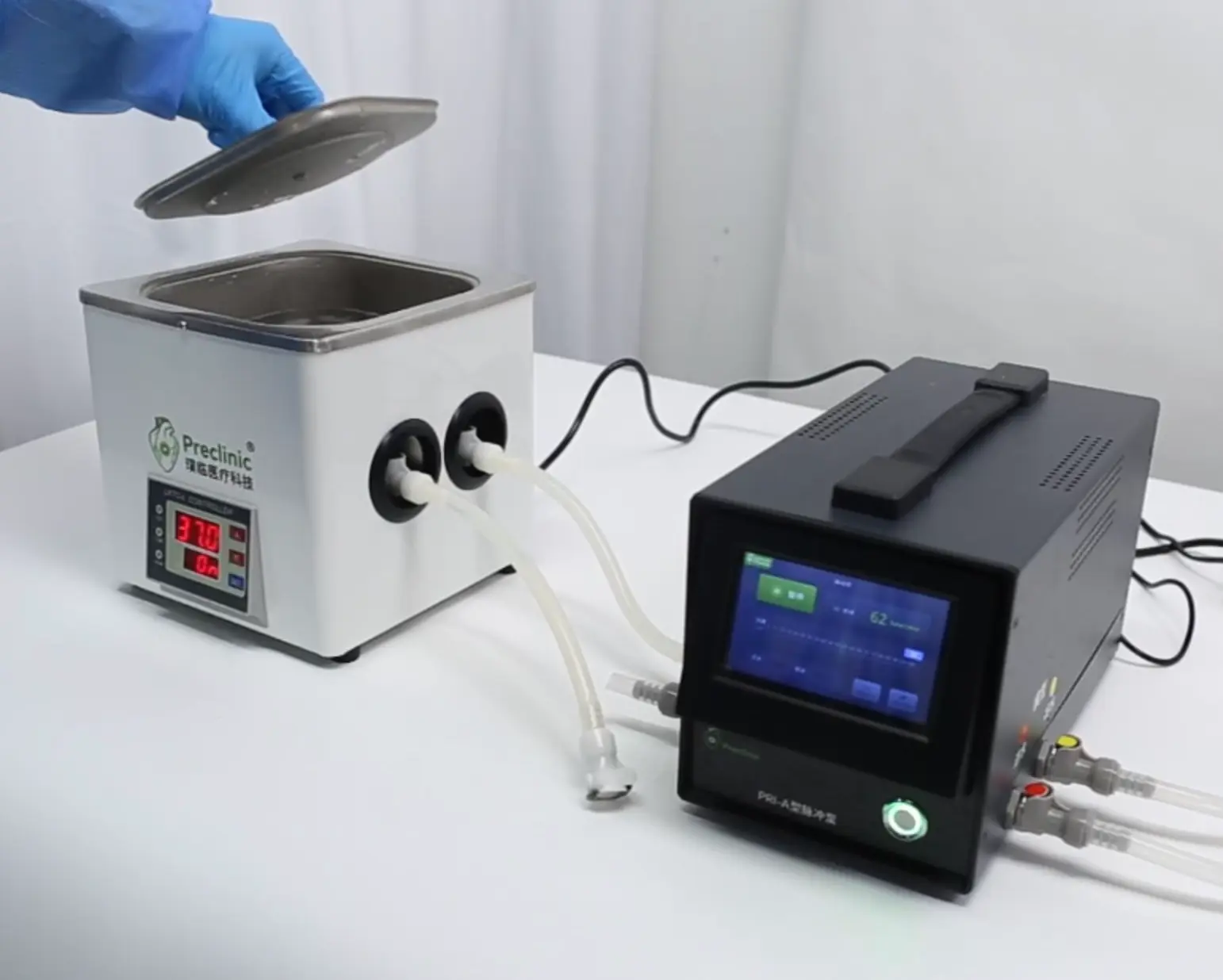

wx20241120 1334592x

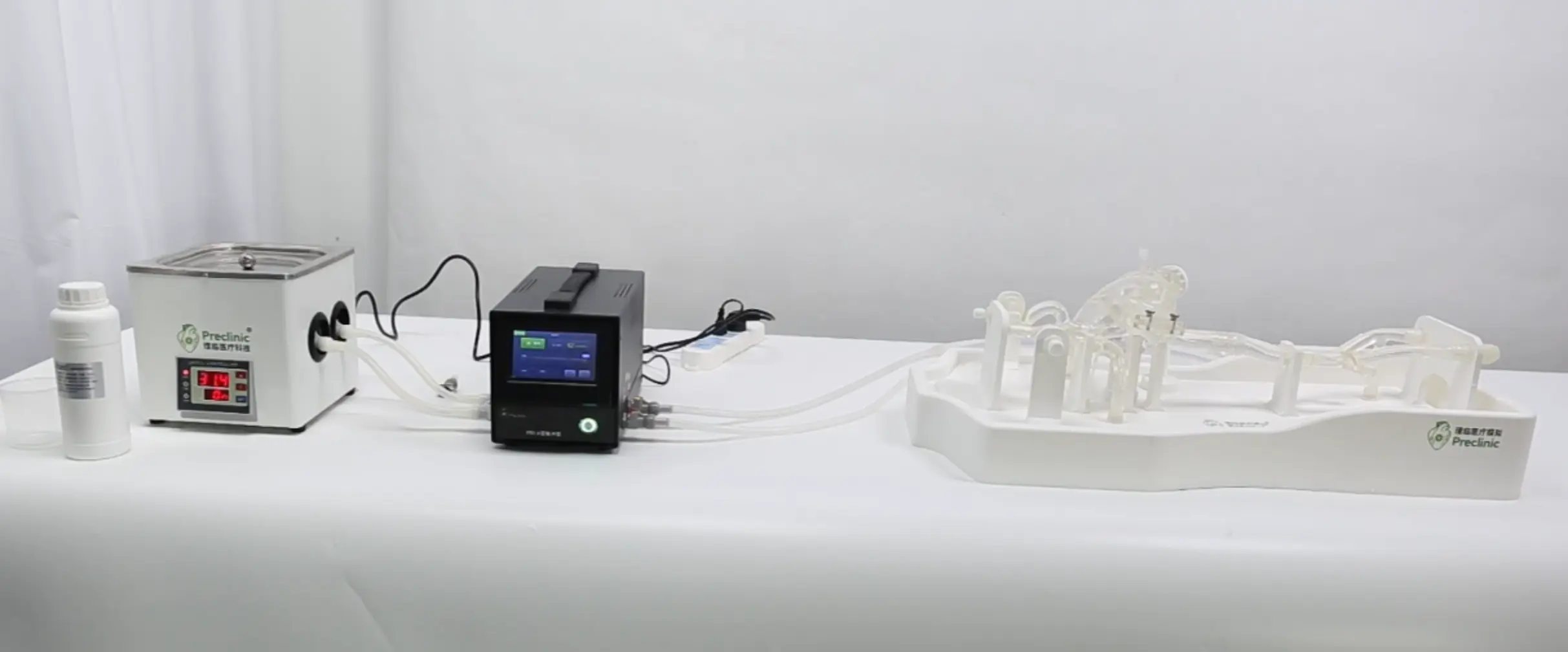

wx20241120 1334432x

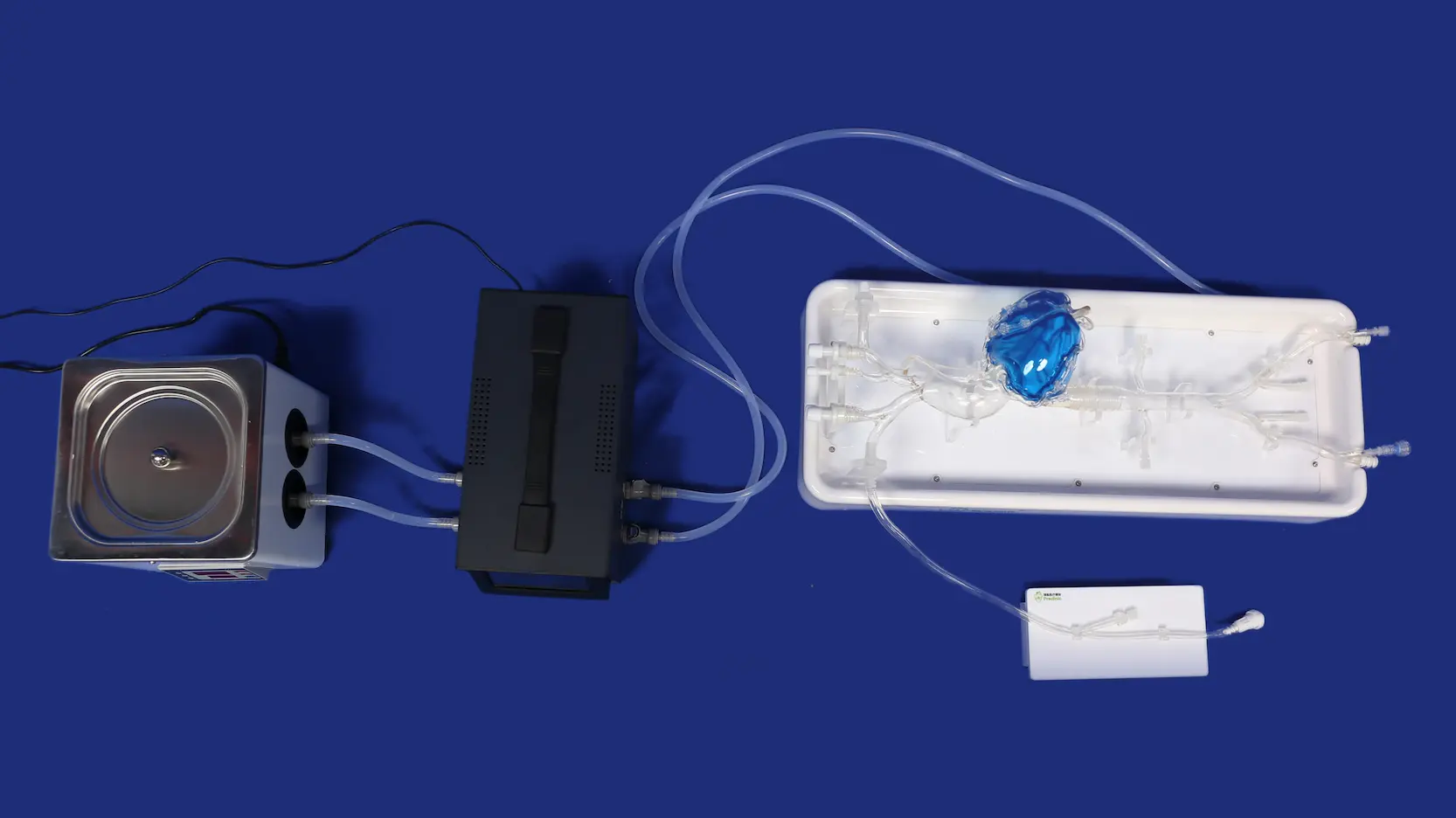

wx20241120 1332502x

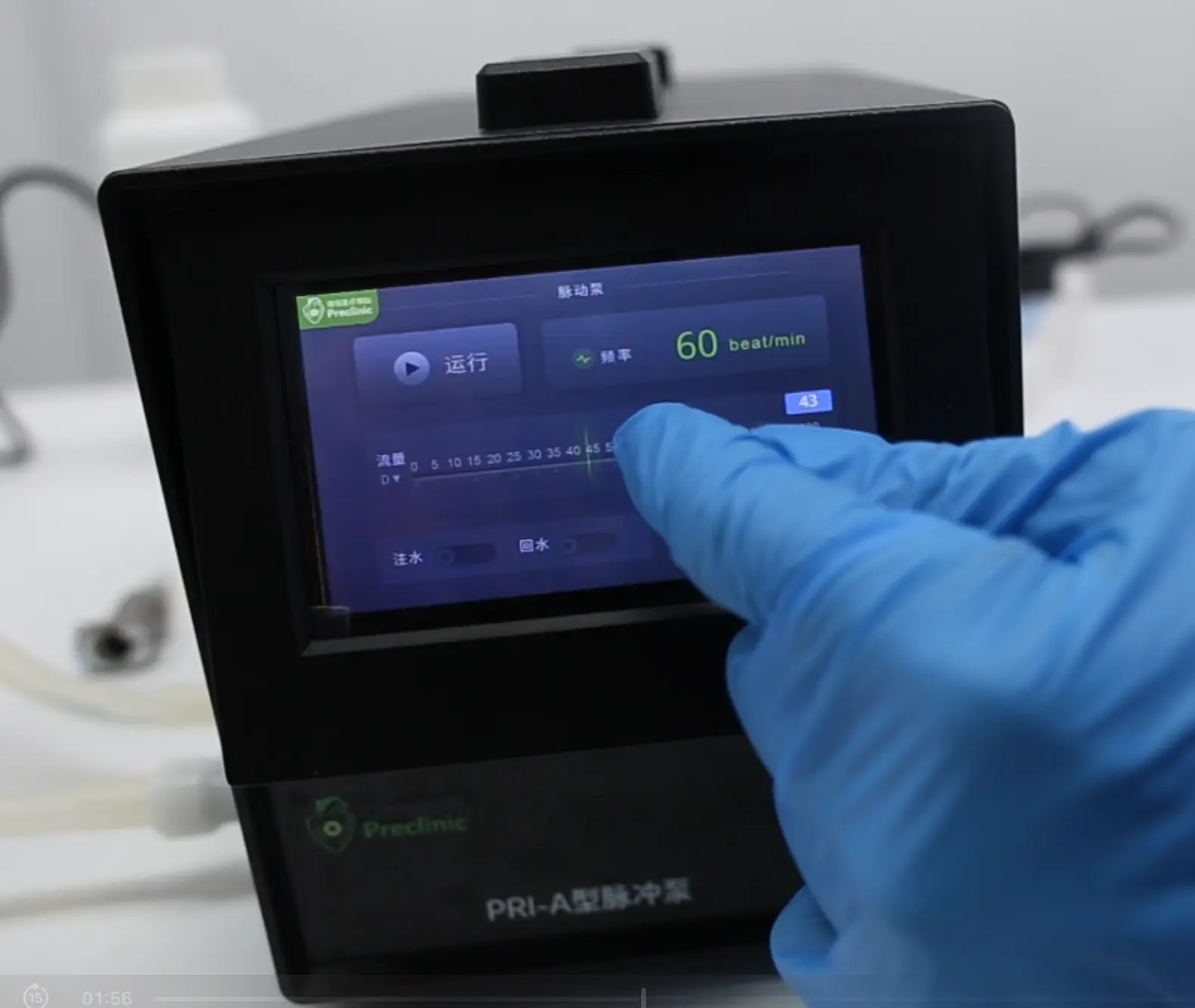

wx20241120 1334252x

Cardiac Hemodynamic Simulation Device


This hemodynamic waveform simulator is mainly composed of a pulse pump system, a control system, and an output display system. It is used to provide a blood flow power source for a human blood flow simulation device, and can accurately adjust the required simulation parameters. Also, the hemodynamic simulator is used to heat the simulated fluid of the cardiovascular model and control the temperature.


The cardiovascular simulator's high accuracy and real-time feedback capabilities make it an indispensable tool for enhancing the skills of healthcare professionals. By investing in this state-of-the-art hemodynamic simulation device, institutions can significantly improve the quality of education and patient care outcomes.


Choose Preclinic Medtech's cardiovascular hemodynamic waveform simulator for unparalleled performance, reliability, and comprehensive support in your medical training and research endeavors. This cardiovascular simulator is designed to meet the highest standards, ensuring that your team is well-prepared for real-world scenarios.

Contact us


Products


Features of Pulsation pump (Touchable display screen)

• Pulsatile frequency: 10-160 beats/ min

• Flow range: 200-2,000 ml/ min

• Maximum output pressure: 250 mmHg

• Current/ voltage: 24V/ 3A

• Volume: 3L

• Power: 300 W

• Temperature control range: + 5°C-100°C

• Temperature control accuracy: ± 0.5°C

• Outer packing size: 640 * 420 * 320 (mm)

Weight of the cardiac output simulator: 6.5 kg



Specification of Pulsation pump (Touchable display screen)

Cardiac hemodynamic simulation deviceMODEL: PLAB2001
FeaturesControllable output liquid frequency, flow, and temperature
Stable operation state, small size, lightweight and portable
Quick and easy joint connection and less liquid sprinkling
Output simulated blood with temperature for human hemodynamic simulation devices (e.g. water, preclinical lubricating fluid, blood, etc.)

Easy installation, applicable to cardiovascular hemodynamic demonstration and training devices.


Lead Time15 days
PortShanghai, China



Pulsation pump (Touchable display screen)

Heart disease research:

Researchers can use this simulation device to simulate various heart disease scenarios, such as heart failure, arrhythmia, myocardial infarction, etc., to study their pathological mechanisms and treatment methods.


Device development and optimization:

Medical device manufacturers can use the cardiovascular simulator to develop and optimize new products to ensure the safety and effectiveness of the device in clinical applications.


Clinical training:

Medical education institutions can use this cardiology simulator for teaching and training of the cardiovascular system to help students and medical staff master complex heart and hemodynamics knowledge.
